Arc Welding Tools and Equipment List

Arc welding is a versatile and widely used welding process that joins metals by creating an electrical arc between an electrode and the workpiece. This process requires specific tools and equipment to ensure safety, precision, and efficiency. Whether you're a professional welder or a DIY enthusiast, having the right tools at your disposal is essential for successful arc welding projects. In this comprehensive guide, Megmeet will explore the essential arc welding tools and equipment you need to have in your workshop. From welding machines to safety gear, we'll cover everything you need to know to get started with arc welding.



1. Arc Welding Machines.

The cornerstone of any arc welding setup is the welding machine itself. These machines are responsible for generating the electrical current needed to create the welding arc. There are several types of arc welding machines available, including:


  1. Stick Welders (SMAW): Also known as shielded metal arc welding, stick welders are one of the most commonly used arc welding machines. They are versatile and can be used for welding a wide range of metals.

  2. MIG Welders (GMAW): Metal Inert Gas welding machines use a wire electrode and a shielding gas to create a clean and efficient weld. They are excellent for welding steel, stainless steel, and aluminum.

    Megmeet CO₂/MAG/MIG/TIG/MMA/ Carbon Arc Gouging All-in-one Welding Machine

  3. TIG Welders (GTAW): Tungsten Inert Gas welding machines are known for their precision and ability to weld thin materials. They are commonly used for stainless steel, aluminum, and exotic metals.

  4. Flux-Cored Welders (FCAW): Flux-cored arc welding machines use a tubular wire electrode with a flux core, eliminating the need for an external shielding gas. They are suitable for outdoor welding and heavy-duty applications.

Contact Megmeet Welding to get a quote!


The choice of welding machine depends on the type of welding you plan to do and the materials you'll be working with. Make sure to select a machine that suits your specific needs. To buy an ideal welding machine, you can refer to the following articles:

1. 5 Tips to Select a Suitable Welding Machine
2. Enhancing Welding Value through Welding Machine Purchase

3. Top 10 GMAW Welding Machine Brands in the World (in 2023)
.

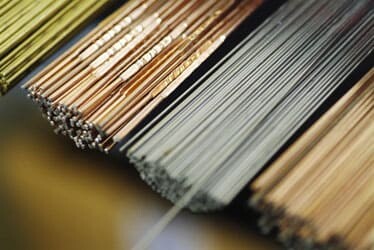

2. Electrodes and Filler Metals

Electrodes and filler metals are essential components for arc welding. Electrodes are consumable rods or wires that provide the material to be deposited into the weld joint, while filler metals are used to fill gaps and reinforce the weld. Different types of electrodes and filler metals are available to match the base metal you are working with, including:


  • E6010 and E6011: These electrodes are ideal for welding mild steel and are known for their deep penetration capabilities.

  • E7018: A popular choice for welding high-strength steel, E7018 electrodes provide excellent strength and quality welds.

  • ER70S-6: This MIG welding wire is suitable for welding mild steel and is versatile enough for a wide range of applications.

  • ER308L: When working with stainless steel, ER308L filler wire is an excellent choice for creating strong and corrosion-resistant welds.

  • 4043 Aluminum: For welding aluminum, 4043 aluminum filler wire is commonly used to ensure proper alloy matching.


Always ensure that your electrodes and filler metals are compatible with the base metal and welding process you intend to use.



3. Welding Helmets and Eye Protection

Protecting your eyes and face from the intense light and sparks generated during welding is crucial. Welding helmets and eye protection gear are designed to keep you safe while providing clear visibility of your work. Key features to consider when selecting welding helmets and eye protection include:


  • Auto-Darkening Helmets: These helmets automatically adjust their shade level to protect your eyes from the welding arc's brightness. They offer convenience and increased safety.

  • Passive Helmets: Passive helmets have a fixed shade level and are more affordable than auto-darkening helmets. However, they require you to lift the helmet when not welding.

  • Safety Glasses: In addition to a welding helmet, it's essential to wear safety glasses with side shields to protect your eyes from flying debris and UV radiation.

  • Face Shields: Face shields provide extra protection for your face and neck, particularly when working in close quarters or performing overhead welding.


Investing in high-quality eye protection is a must to ensure the long-term health of your eyes and prevent injuries.

Welding Helmets.jpg

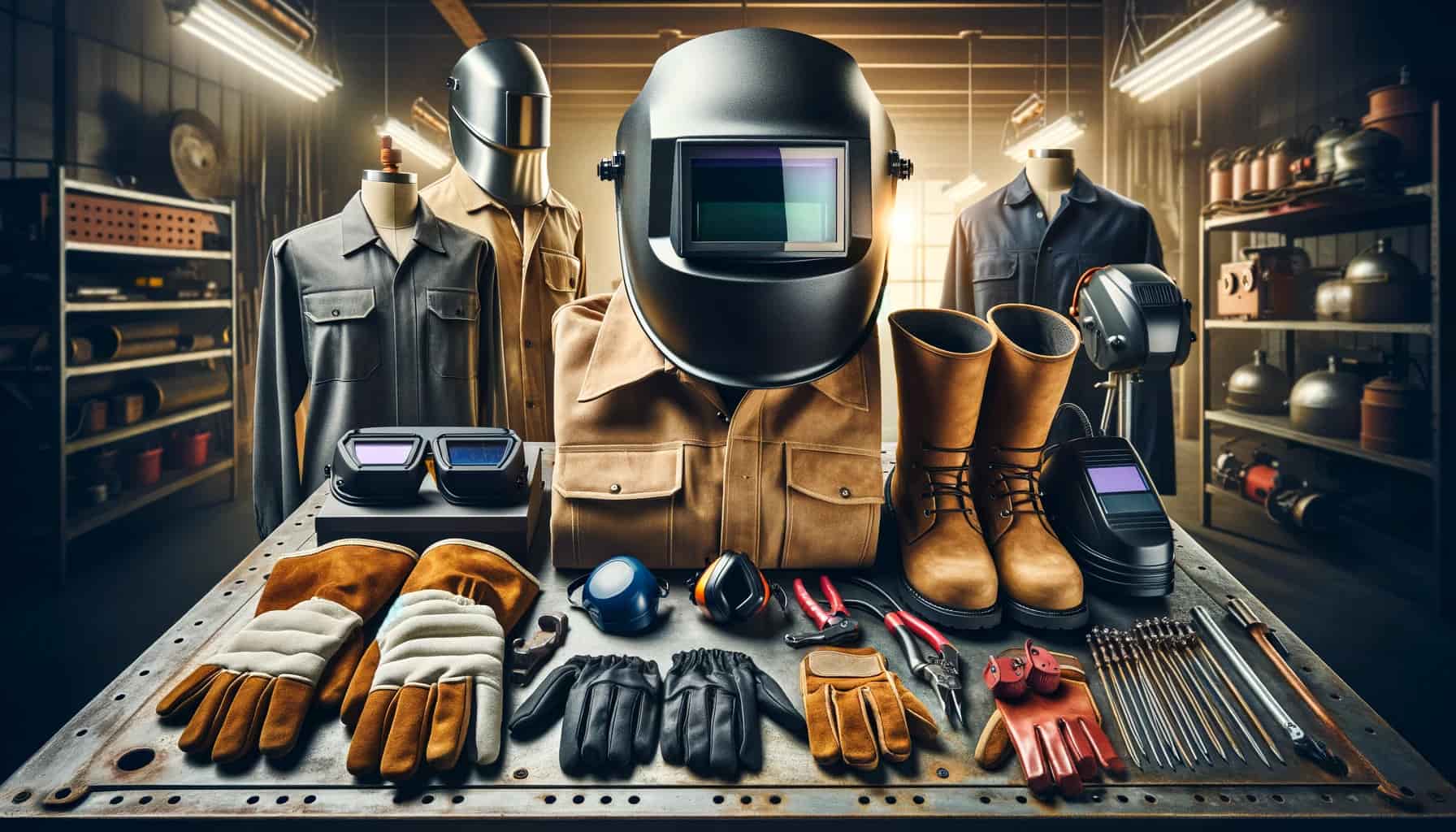

4. Welding Gloves and Apparel

Welding generates intense heat and sparks, making it crucial to protect your hands and body. Welding gloves and appropriate clothing are essential to prevent burns and injuries. Here are some key items to consider:


  • Welding Gloves: Welding gloves are designed to withstand high temperatures and provide a secure grip on welding tools and workpieces. They come in various materials, including leather and Kevlar.

  • Welding Jackets and Aprons: These flame-resistant garments protect your upper body from sparks and heat. They should fit snugly to prevent any exposed skin.

  • Welding Pants: Welding pants are made from flame-resistant materials and provide additional protection for your lower body.

  • Welding Boots: Steel-toed welding boots offer foot protection from heavy objects and hot metal.

  • Welding Cap or Doo Rag: These head coverings protect your head and hair from sparks and heat.


Proper welding apparel not only ensures your safety but also enhances your comfort during long welding sessions.

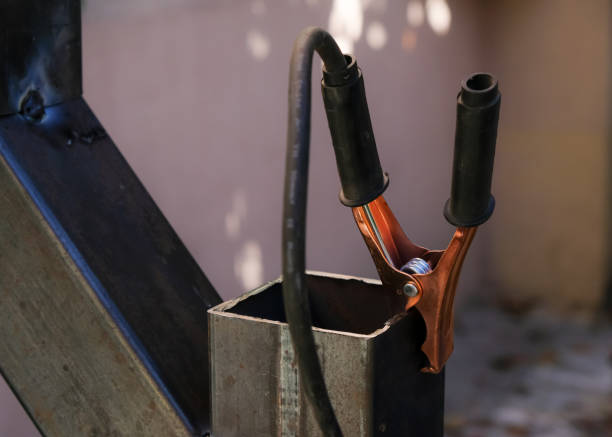

5. Welding Clamps and Magnets

Welding often involves holding workpieces in position during the welding process. Welding clamps and magnets are indispensable tools for securing materials in the correct alignment. Some common types of welding clamps and magnets include:


  • C-Clamps: C-clamps are versatile and can be used to hold metal pieces together while welding.

  • Magnetic Welding Clamps: These clamps use powerful magnets to hold ferrous materials firmly in place.

  • Welding Pliers: Welding pliers are handy for holding small objects, cutting wire, and removing slag.

  • Welding Magnets: Welding magnets come in various shapes and sizes and are used to hold metal pieces at precise angles during welding.


Using the right clamps and magnets ensures that your welds are precise and your workpieces stay in alignment.

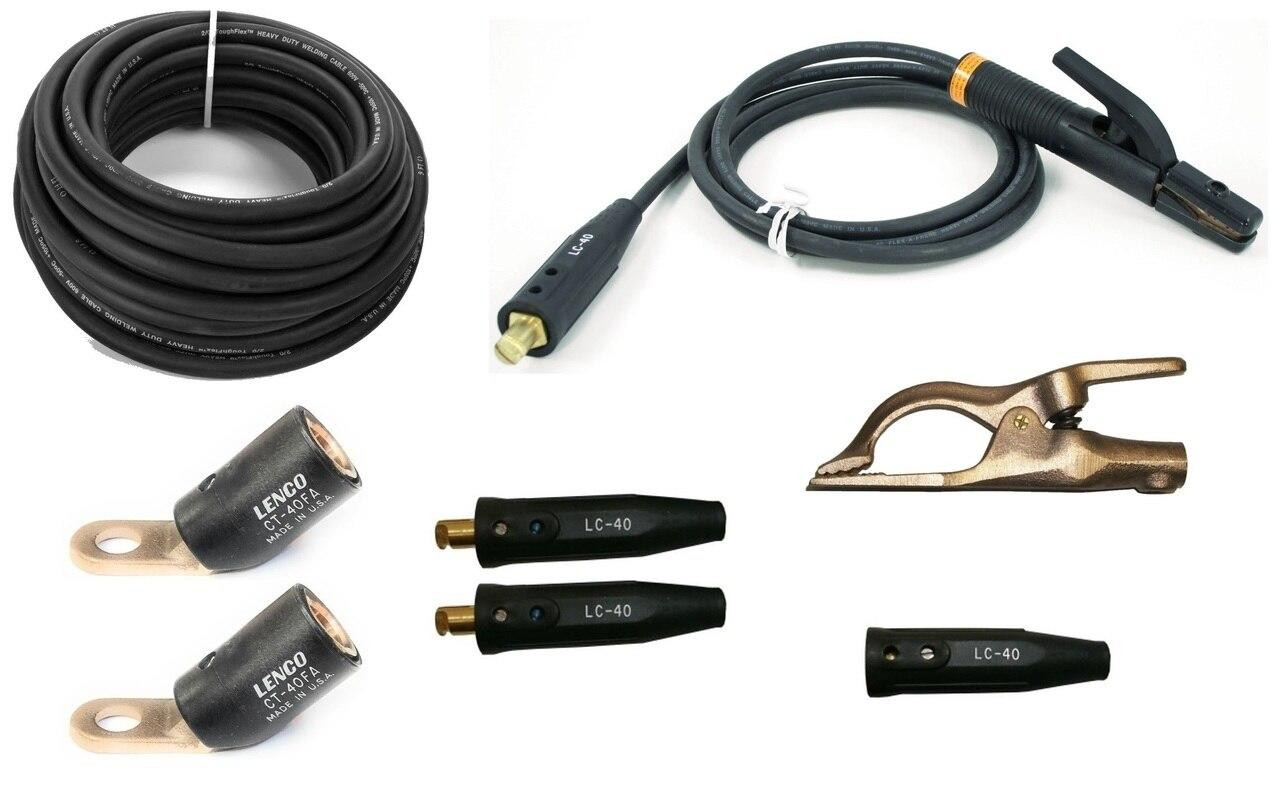

6. Welding Cables and Connectors

Welding machines require cables and connectors to transmit electrical current from the machine to the electrode holder and ground clamp. It's essential to have the following components:


  • Welding Cables: High-quality, flexible welding cables are necessary for efficient current transmission. The size of the cable should match the amperage output of your welding machine.

  • Electrode Holder: The electrode holder clamps onto the welding electrode and conducts the current to the workpiece.

  • Ground Clamp: The ground clamp connects the workpiece to the welding machine's ground, completing the electrical circuit.


Regularly inspect your cables and connectors for wear and tear to ensure safety and proper welding performance.

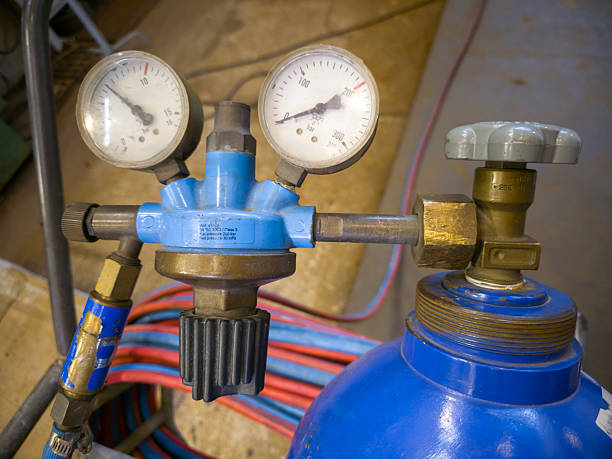

7. Welding Gas and Regulators

Gas welding processes, such as MIG and TIG welding, require shielding gas to protect the weld from atmospheric contamination. Here are some key components related to welding gases:


  • Shielding Gas: Common shielding gases include argon, carbon dioxide, helium, and mixtures of these gases. The choice of gas depends on the welding process and the materials being welded.

  • Gas Regulator: A gas regulator controls the flow of shielding gas from the cylinder to the welding machine. It allows you to adjust the gas flow rate accurately.

  • Gas Cylinder: Shielding gases are stored in high-pressure cylinders. Ensure that your gas cylinders are securely mounted and well-maintained.


Proper gas handling and regulation are crucial for achieving clean and strong welds in MIG and TIG welding.



8. Welding Table or Workbench

Having a stable and well-designed welding table or workbench is essential for a clean and efficient welding setup. Welding tables offer several advantages, including:


  • Flat Surface: A flat surface ensures that your workpieces remain level and in the correct alignment during welding.

  • Clamping and Fixturing Options: Many welding tables come with built-in clamping and fixturing systems, making it easier to secure workpieces in place.

  • Heat Resistance: Welding tables are typically made from materials that can withstand high heat without warping or damage.


Consider your workspace and the types of projects you'll be working on when choosing a welding table or workbench.



9. Angle Grinders and Cutting Tools

Welding often requires cutting and shaping metal, and angle grinders are versatile tools for this purpose. Key cutting and grinding tools include:


  • Angle Grinder: Angle grinders are used for cutting metal, grinding welds, and shaping workpieces. They come in various sizes and with different types of abrasive wheels.

  • Cutting Torch: Oxy-fuel cutting torches use a combination of oxygen and fuel gas (such as acetylene) to cut through metal. They are handy for cutting thick steel.

  • Plasma Cutter: Plasma cutters use a high-velocity jet of ionized gas to cut through metal cleanly and precisely. They are excellent for cutting a variety of materials.

  • Chop Saw: A chop saw is a powerful tool designed specifically for cutting metal at various angles.


Having the right cutting tools ensures that you can prepare your workpieces effectively before welding.

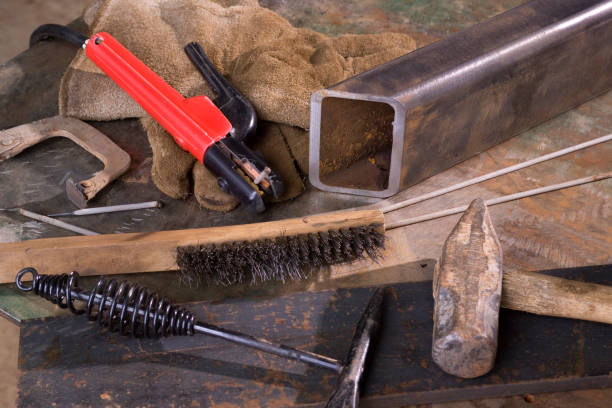

10. Wire Brush and Chipping Hammer

After welding, it's essential to clean the weld area to remove slag, spatter, and impurities. Wire brushes and chipping hammers are used for this purpose:


  • Wire Brush: A wire brush with stainless steel or brass bristles is used to clean the surface of the weld and surrounding area.

  • Chipping Hammer: Chipping hammers have a pointed end for removing slag and a chisel end for chipping away unwanted weld material.


Properly cleaning your welds is essential for achieving strong and visually appealing results.

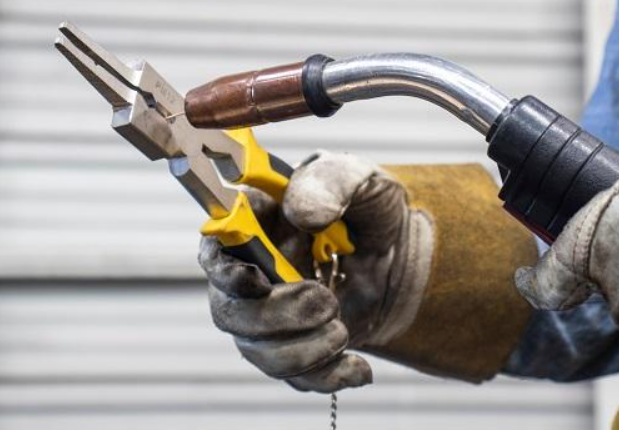

11. Welding Pliers and Tools

Welding pliers and specialized tools can be incredibly useful for various tasks in the welding process:


  • MIG Pliers: These pliers are designed to trim and remove the welding wire, clean the nozzle, and tighten the nozzle and contact tip.

  • TIG Welding Accessories: TIG welding requires specific tools for tasks such as tungsten electrode preparation, gas lens installation, and ceramic cup placement.

  • Welding Tongs: Welding tongs can be used to hold small pieces of metal together during tack welding.


Having the right welding tools on hand can make your welding projects more efficient and precise.



12. Safety Gear and Accessories

Safety should be a top priority when working with arc welding equipment. In addition to welding helmets and eye protection, consider the following safety gear and accessories:


  • Respirator: Depending on the welding process and materials, you may need a respirator to protect against fumes and airborne particles.

  • Ear Protection: Welding can be loud, so ear protection is important to prevent hearing damage.

  • Welding Screens and Curtains: These protect bystanders and nearby surfaces from sparks and UV radiation.

  • Fire Extinguisher: Have a fire extinguisher on hand in case of welding-related fires.

  • First Aid Kit: A well-stocked first aid kit is essential for treating minor injuries and burns.


Safety should never be compromised, so make sure you have all the necessary gear and accessories to protect yourself and others.

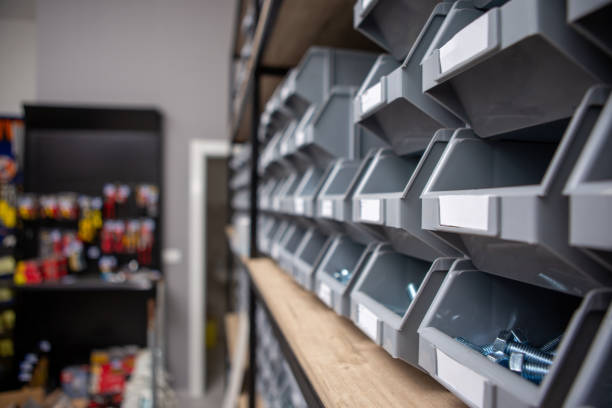

13. Welding Consumables Storage

Proper storage of welding consumables, such as electrodes and filler metals, is vital to maintain their quality and performance. Consider these storage tips:


  • Electrode Oven: Keep low-hydrogen electrodes in a dedicated electrode oven to prevent moisture absorption, which can lead to weld defects.

  • Rod Storage Cabinet: Store welding rods in a rod storage cabinet to protect them from contamination and humidity.

  • Sealable Containers: Filler metals should be stored in sealed containers to prevent exposure to moisture.

  • Labeling: Clearly label all containers to identify the type of welding consumables and their date of purchase.


Maintaining the integrity of your welding consumables is essential for achieving high-quality welds.



Conclusion

Arc welding is a highly effective and versatile welding process used in various industries and applications. To excel in arc welding, it's crucial to have the right tools and equipment at your disposal. From welding machines to safety gear, welding tables to cutting tools, this comprehensive list covers all the essential items you need for successful arc welding projects.


Remember that safety should always come first in welding. Invest in high-quality safety gear, and take the time to properly maintain and inspect your equipment. With the right tools and a commitment to safety, you can tackle welding projects with confidence and achieve outstanding results.
