Suitable for Robotic Laser Welding and Handheld Laser Welding. (1.5KW / 2KW / 3KW)
Super-stable electronic control solution of laser brings extremely stable power output and helps power fluctuation less than 1.5%;
Industrial-grade electronic control design of laser enables annual average laser power attenuation being less than 4%;
In the case of dramatic changes in environments (such as grid fluctuations, temperature changes, etc.), the performance of each machine can be always consistent;
Unique hardware design and software control ensures that the output parameters of the machine are still accurate and consistent after a long period of service;
Two modes are available: continuous and pulse, adaptive for heat conduction welding of thin plates and deep penetration welding of medium & thick plates with a large depth-to-width ratio;
High welding efficiency to save time and labor, one laser welding machine be equivalent to four TIG machines;
Industrial-grade LCD touch-screen supports friendly operation and simple & efficient human-computer interaction;
10 JOBs to save parameters with user-defined, suitable for both handheld welding and robotic welding;
Weldable Materials: Carbon steel, stainless steel, high-strength steel, galvanized sheet, corrugated sheet, aluminum alloy, magnesium alloy, alloy, and other kinds of metals.
Auto parts, two/tricycles, photovoltaics, energy storage, charging devices, and other occasions with diversified welding positions and complicated processes, especially suited to robot and automatic laser welding.
1. Sheet metal, kitchen utensils, tableware, cabinet, hardware building materials, doors&windows, elevators, shelves, handicrafts and other civil-level hardware parts;
2. Auto parts, two/tricycles, photovoltaics, energy storage, charging devices, and other occasions with diversified welding positions and complicated processes, especially suited to robot and automatic laser welding.

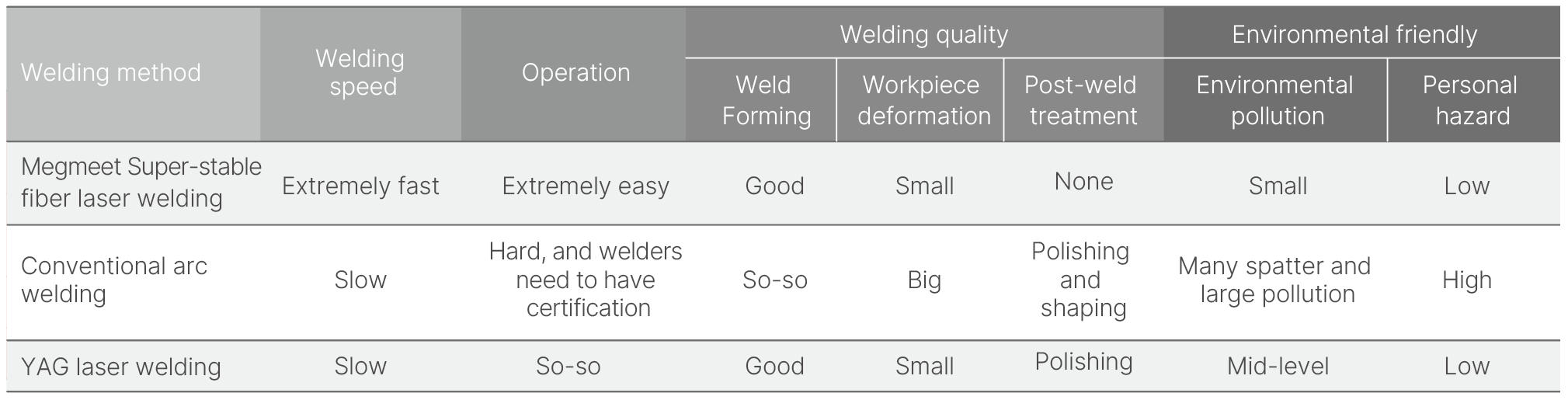

Welding method | Welding speed | Operation | Welding quality | Environmental friendly | |||
Weld Forming | Workpiece deformation | Post-weld treatment | Environmental pollution | Personal hazard | |||
Megmeet Super-stable fiber laser welding | Extremely fast | Extremely easy | Good | Small | None | Small | Low |
Conventional arc welding | Slow | Hard, and welders need to have certification | So-so | Big | Polishing and shaping | Many spatter and large pollution | High |
YAG laser welding | Slow | So-so | Good | Small | Polishing | Mid-level | Low |
Product Name | MEGMEET Super-stable Fiber Laser Welding Machine | ||
---|---|---|---|
Product Models | LS-1500 | LS-2000 | LS-3000 |
Rated input voltage | 220V 50/60HZ | 220V 50/60HZ | 380V 50/60HZ |
Rated input power | 6KW | 8KW | 12KW |
Rated output laser power | 1.5KW | 2KW | 3KW |
Output laser wavelength | 1080±10nm | 1080±10nm | 1080±10nm |
Cable length | Standard is 10 meters and could be extended to 15 meters | ||
Working method | Continuous and modulated | ||
Cooling method | Water-cooled (industrial dual-temperature & dual-control constant temperature water cooler) | ||
Working temperature range | -10℃ ~ 40℃ | -10℃ ~ 40℃ | -10℃ ~ 40℃ |
Working humidity range (Tc=40°C) | <70% no condensation | <70% no condensation | <70% no condensation |
Welding thickness | 0.5-5mm | 0.5-6mm | 0.5-8mm |
Welding gap | ≦1mm | ≦1mm | ≦1mm |
Dimensions (L*W*H) | 915*790*540mm | 915*790*540mm | 915*790*540mm |
Weight | ≦90kg | ≦90kg | ≦130kg |
