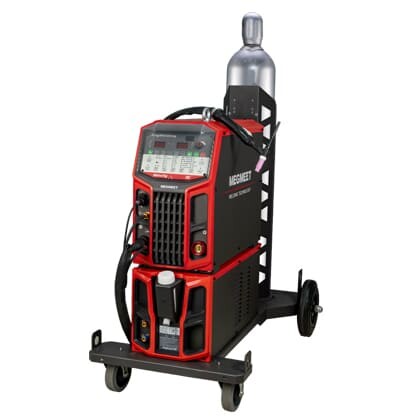

MetaTIG DC HF TIG Welders 315/400/500A

Full-digital IGBT Inverter Multifunctional DC TIG Welder

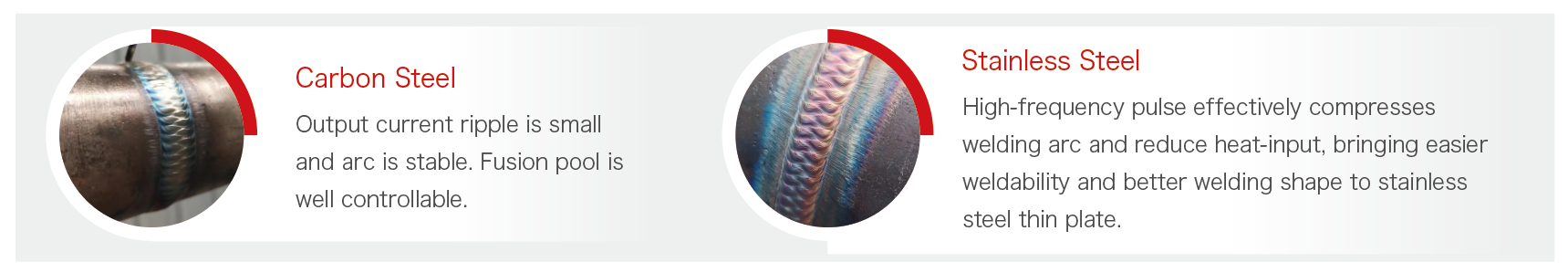

Wide welding applications: supporting carbon steel, stainless steel, alloy steel, and other metal materials;

Comprehensive functions: pulse DC TIG, high-speed TIG spot welding, MMA, and others;

Full digital intelligent control: the internal background menu is open and adjustable to better satisfy more technical requirements of various working conditions;

VRD anti-shock function: there are adjustable arc force and better arc stiffness in MMA mode;

IOT interface reserved: quick access to Megmeet SMARC management platform or the third-party welding data system to realize efficient welding interconnection;

Connecting with different brands of robots and automation: the reserved communication interface supports multiple types of communication protocols to complete welding robot connection;

Software is upgradeable: through the U-disk interface to help customers easily obtain Megmeet foremost welding process or customized functions;

Optional foot switch, water-cooler, water-cooled torch, trolley, etc.

Specification User Manual

Megmeet MetaTIG DC HF TIG Welders 315/400/500A

Features

1. Extensive Welding Process

Diversified welding applications from ultra-thin to medium-thick plates with high-performance welding quality

Welding Process Type	Welding Process Name	Advantage	Material	Industry
DC TIG	DC TIG	Stable arc, high adaptability for the gap, easier for one-sided welding and double-sided forming	Carbon steel, stainless steel, titanium alloy, etc.	Petrochemical, pressure pipeline&vessel backing weld, etc.

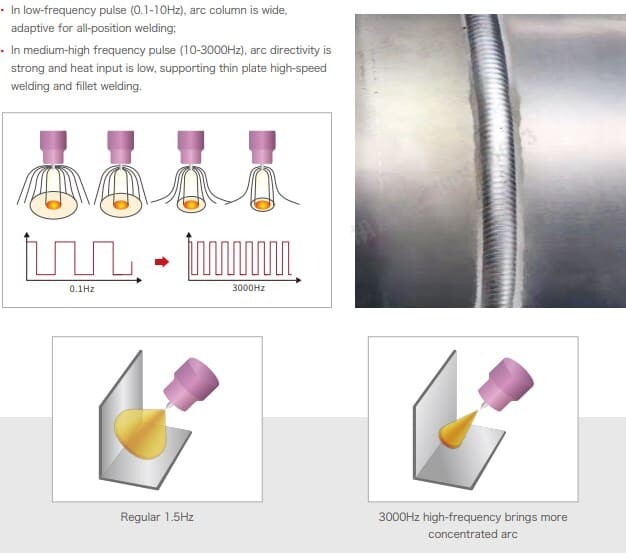

DC PULSE TIG	DC-Pulse TIG	Low heat input, beautiful fish-scale shape is available, pulse frequency up to 3000Hz	Carbon steel, stainless steel, titanium alloy, etc	Sheet metal and welding occasions with requirements for heat input and weld form, etc.
MMA	MMA	Easy arc start, non-stick with the rod, softer arc&less spatter, and beautiful weld shape	Carbon steel, alloy steel, stainless steel, etc.	Boiler, pressure vessel, petrochemical industry, pressure pipeline, outdoor construction, etc.

2. Multiple waveform controls provide optimal combination according to welding needs

1) With triangle wave, square wave, sine wave, trapezoidal wave, and others;

2) Optimal setting for the waveform in different welding phases.

Conventional and triangular-wave TIG welding.jpg

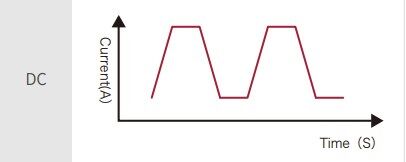

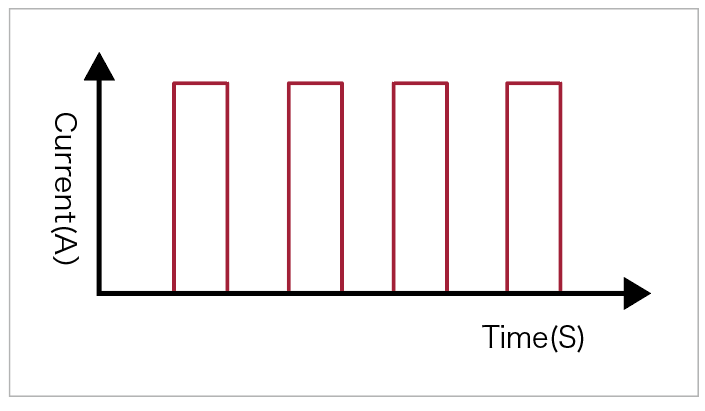

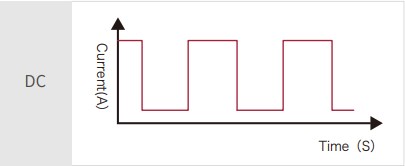

Square Wave Precise control in current waveform and accurate adjustment in parameters of peak current, base current, frequency and others, with high arc stability and good dynamic characteristics, applicable for various stainless steel welding.	Trapezoidal Wave Soft arc brings a good wetting effect to the fusion pool, suited to groove welding and overhead welding.

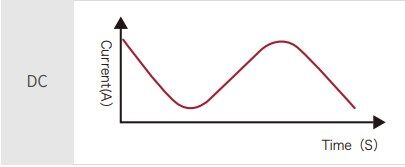

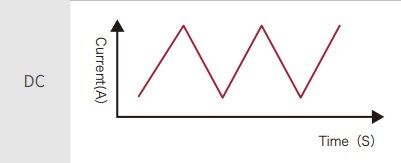

Triangle Wave Short peak-time and low heat-input, suitable for thin sheet welding.	Sine Wave Arc noise is smaller and softer.
