Artsen II P(C)M Double-pulse MIG/MAG Welders

Full-function Double-pulse MIG/MAG Welder for Multiple Metal Materials.

Digital Microprocessor Controlled Inverter Technology.

Synergic control of MIG/MAG/C02 process, Pulse / Double Pulse MIG/MAG.

Stable welding with stick-out length up to 30mm

Standard locking function for both front panel locking & parameters range locking.

Standard Job saving features (up to 50 Job)

Supporting SMARC for networking

Convenient for building multi-operator system

Proven record in heavy industries since 2014;

High tolerance against input voltage fluctuation (25%+/-);

Superior reliability with self-protecting design and error code display for easy maintenance;

Intermediate Wire-feeder

Light and small. with convenience for frequent mobility;

Rigid with aluminum framework;

Digital display of welding current and voltage;

Functional for current and voltage set-up;

Supporting both solid wire and flux-cored wire;

Standard gas-cool and water-cool;

Synchronization between main and intermediate wire-feeder;

Self-protecting rubber inter-connection cable;

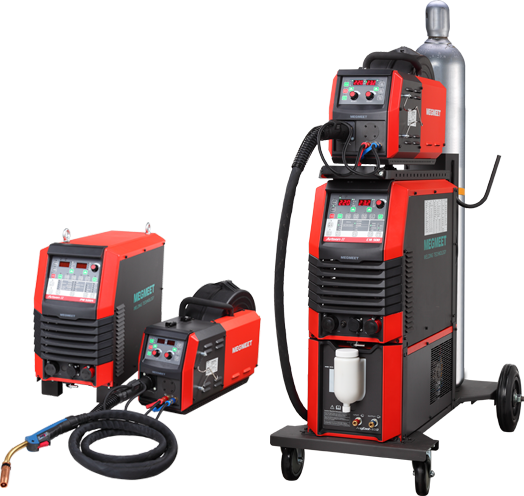

Megmeet Artsen II P(C)M Double-pulse MIG/MAG Welders
Application & Industries

Artsen II series full-function CO2/MAG/MIG welding machines -- widely used in construction, automotive, pressure vessel, energy & power, shipbuilding, and other industries.

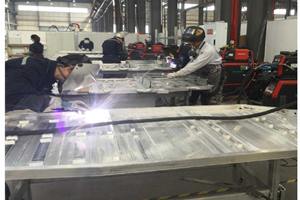

  • MEGMEET Construction_Aluminum Scarfolding Welding_A II
    Construction Welding

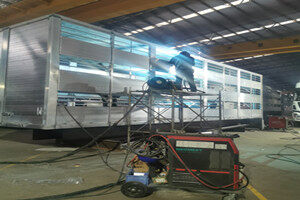

  • MEGMEET Automotive_Aluminum Vehicle Welding_A II
    Automotive Welding

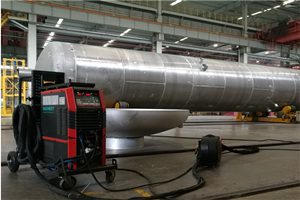

  • MEGMEET Pressure Vessel_Aluminum Tank Welding_A II
    Pressure Vessel Welding

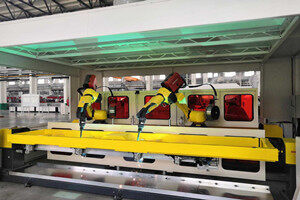

  • MEGMEET Automotive_ Car Components Welding_ A II
    Automotive Welding
  • MEGMEET Automotive EV_Aluminum Battery Tray Welding_A  II
    Automotive Welding

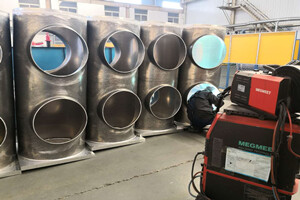

  • MEGMEET Energy & Power Welding_A II
    Energy & Power Welding

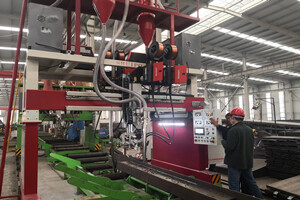

  • MEGMEET Steel Construciton Welding_A II
    Steel Construciton Welding

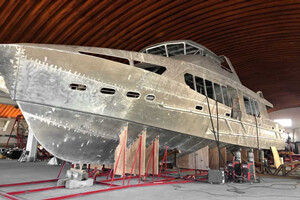

  • MEGMEET Shipbuilding_Aluminum Boats Welding_A II
    Ship-building Welding


Excellent Welding Performance

This series of products are equipped with a control process of "special energy controlled short-circuit transition", a droplet transfer control process of "pulse energy adjustment", and a synergic pulse energy control process based on varying wire feeding speeds, being suitable for carbon steel, stainless steel, and aluminum alloys and another high-quality welding, etc.

Push-pull Welding Torch - Outstanding Stability with Push-pull Wire-feeding

Product Features:

Intermediate Wire-feeder - Mid-way Reinforcement for Ultra-Long Wire-feeding

Product Features:

A table tells you the gas, wire, and other welding parameters of the Artsen II Series.

Welding Process of Artsen II CM/PM series
ModelProcessGas/Wire/Diameter (mm)
100% Ar97.5% Ar+2.5% CO₂80% Ar +20%  CO CO₂ 100%
AluminumAISiAIMgCuSi/AISiStainless Steel Solid WireCarbon Steel Solid WireCarbon Steel Solid WireCarbon Steel Flux-cored WireStainless Steel Flux-cored Wire
Artsen II CM350Synergic CO₂/MIG/MAG-----0.8/1.0/1.20.8/1.0/1.21.2-
Artsen II CM400Synergic CO₂/MIG/MAG-----0.8/1.0/1.20.8/1.0/1.21.2-
Artsen II CM500Synergic CO₂/MIG/MAG-----0.8/1.0/1.2/1.60.8/1.0/1.2/1.61.2/1.6-
Artsen II PM400 FSynergic CO₂/MIG/MAG-----0.8/1.0/1.20.8/1.0/1.21.2-
Pulse MIG/MAG-----0.8/1.0/1.2---
Double Pulse MIG/MAG-----0.8/1.0/1.2---
MIG Brazing (optional)---1.2-----
Artsen II PM500 FSynergic CO₂/MIG/MAG-----0.8/1.0/1.2/1.60.8/1.0/1.2/1.61.2/1.6-
Pulse MIG/MAG-----0.8/1.0/1.2/1.6---
Double Pulse MIG/MAG-----0.8/1.0/1.2/1.6---
MIG Brazing (optional)---1.2-----
Artsen II PM400 NSynergic CO₂/MIG/MAG-----0.8/1.0/1.20.8/1.0/
Pulse MIG/MAG----1.0/1.20.8/1.0/1.2---
Double Pulse MIG/MAG----1.0/1.20.8/1.0/1.2---
MIG Brazing (optional)---1.2-----
Artsen II PM500 NSynergic CO₂/MIG/MAG-----0.8/1.0/1.2/1.60.8/1.0/1.2/1.61.2/1.61.2/1.6
Pulse MIG/MAG----1.0/1.2/1.60.8/1.0/1.2/1.6---
Double Pulse MIG/MAG----1.0/1.2/1.60.8/1.0/1.2/1.6---
MIG Brazing (optional)---1.2-----
Artsen II PM400 ASSynergic CO₂/MIG/MAG-----0.8/1.0/1.20.8/1.0/
Pulse MIG/MAG1.21.21.2-1.0/1.20.8/1.0/1.2---
Double Pulse MIG/MAG----1.0/1.20.8/1.0/1.2---
MIG Brazing (optional)---1.2-----
Artsen II PM500 ASSynergic CO₂/MIG/MAG-----0.8/1.0/1.2/1.60.8/1.0/1.2/1.61.2/1.61.2/1.6
Pulse MIG/MAG1.2/1.61.0/1.2/1.61.0/1.2/1.6-1.0/1.2/1.60.8/1.0/1.2/1.6---
Double Pulse MIG/MAG----1.0/1.2/1.60.8/1.0/1.2/1.6---
MIG Brazing (optional)---1.2-----
Artsen II PM400 ADSynergic CO₂/MIG/MAG-----0.8/1.0/1.20.8/1.0/
Pulse MIG/MAG1.21.0/1.21.0/1.2-1.0/1.20.8/1.0/1.20.8/1.0/1.21.0/1.21.0/1.2
Double Pulse MIG/MAG1.21.0/1.21.0/1.2-1.0/1.20.8/1.0/1.2---
MIG Brazing (optional)---1.2-----
Artsen II PM500 ADSynergic CO₂/MIG/MAG-----0.8/1.0/1.2/1.60.8/1.0/1.2/1.61.2/1.61.2/1.6
Pulse MIG/MAG1.2/1.61.0/1.2/1.61.0/1.2/1.6-1.0/1.2/1.60.8/1.0/1.2/1.6---
Double Pulse MIG/MAG1.2/1.61.0/1.2/1.61.0/1.2/1.6-1.0/1.2/1.60.8/1.0/1.2/1.6---
MIG Brazing (optional)---1.2-----
