Gas-shielded arc welding processes (TIG/MIG/MAG)

The structural integrity of modern infrastructure, from the depths of maritime vessels to the precision of aerospace components, rests upon the evolution of gas-shielded arc welding (GSAW). This group of processes represents a fundamental shift in metal fabrication, moving away from the smoke-heavy, flux-dependent methods of the early industrial age toward refined, atmospheric-controlled fusions. In a contemporary manufacturing environment, the selection between Tungsten Inert Gas (TIG), Metal Inert Gas (MIG), and Metal Active Gas (MAG) welding defines not only the cost and speed of a project but also the metallurgical reliability of the final joint. Understanding the principles, differences, and typical applications of these processes is essential for engineers, fabricators, and professional welders who aim to balance aesthetic quality with structural efficiency.

I. Principles of Gas-Shielded Arc Welding

Gas-shielded arc welding is defined by the use of an external shielding gas to protect the molten weld pool from atmospheric gases such as oxygen, nitrogen, and hydrogen. When molten metal is exposed to ambient air, it reacts almost instantly, leading to oxidation, nitrogen embrittlement, and hydrogen-induced cracking. The primary mechanism of GSAW involves an electric arc established between an electrode and the workpiece. This arc generates the intense thermal energy required to reach the melting point of the base metal, while a pressurized stream of gas envelopes the arc and the pool, creating a sterile environment for fusion.

The complexity of these processes lies in the interaction between the electrical arc and the chemistry of the shielding gas. The gas is not merely a passive barrier; it is an active participant in arc physics. It influences the ionization potential of the arc, the mode of metal transfer, the depth of penetration, and even the surface tension of the molten pool. By manipulating gas compositions—varying the ratios of Argon, Helium, and Carbon Dioxide—welders can tailor the arc to suit the specific thermal conductivity and chemical sensitivity of the base metal.

The Role of Shielding Gases in Arc Stability

Shielding gases are generally categorized as either inert or active. Inert gases, most commonly Argon (Ar) and Helium (He), do not react with the molten metal even at the extreme temperatures of the welding arc. Argon is favored for its high density, which allows it to displace air more effectively at lower flow rates, and its low ionization potential, which makes for easy arc starting and a stable, quiet arc. Helium, while also inert, has a higher thermal conductivity, resulting in a broader, hotter arc profile that is advantageous for thick sections or metals with high thermal conductivity, such as copper or aluminum.

Active gases, such as Carbon Dioxide (CO2) and Oxygen (O2), are used primarily in the MAG welding of ferrous metals. These gases participate in chemical reactions within the arc. CO2, for instance, dissociates into carbon monoxide and oxygen in the heat of the arc, releasing additional energy that promotes deeper penetration into the steel. However, these reactions can also lead to increased spatter and the oxidation of alloying elements, requiring the use of filler wires containing deoxidizers like silicon and manganese.

II. TIG Welding (GTAW): The Precision Standard

Tungsten Inert Gas (TIG) welding, scientifically referred to as Gas Tungsten Arc Welding (GTAW), is characterized by the use of a non-consumable tungsten electrode to establish the arc. Unlike other processes where the electrode melts to become part of the weld, the tungsten electrode remains intact (assuming proper technique) throughout the procedure. This fundamental difference allows the welder to control the heat input independently of the filler material addition, providing a level of precision that is the industry standard for high-criticality applications.

1) Mechanics and Control in the TIG Process

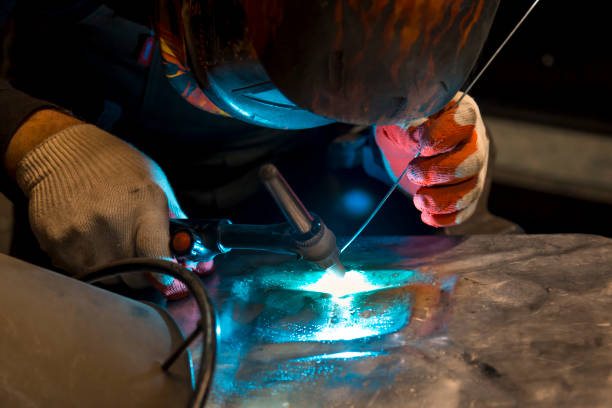

In a typical TIG setup, the welder holds a torch that houses the tungsten electrode and directs the flow of inert gas. Current is regulated either via a machine dial or, more commonly in manual applications, a foot pedal or finger-controlled remote. This allows the operator to increase or decrease the amperage in real-time as the heat builds up in the workpiece, preventing the common issue of burn-through on thin materials.

The addition of filler metal is a manual process where the welder feeds a metal rod into the leading edge of the molten pool with their other hand. This "two-handed" requirement is the primary reason TIG is considered the most difficult welding process to master. The coordination required to maintain a precise arc length (often as small as 1.5mm to 3mm) while simultaneously feeding a rod and modulating heat is extensive.

2) Material Applications and Metallurgical Purity

TIG welding is the preferred method for stainless steel, aluminum, magnesium, and exotic alloys like titanium or inconel. Because the process uses a purely inert gas shield (usually 100% Argon), the resulting weld beads are exceptionally clean and free from the slag and spatter associated with MAG or Stick welding. For stainless steel, the ability to maintain a focused arc ensures that the heat-affected zone (HAZ) is minimized, preserving the corrosion-resistant properties of the material.

In the context of aluminum, TIG welding utilizes Alternating Current (AC). Aluminum naturally forms a tough oxide layer on its surface that melts at a much higher temperature (2,072°C) than the base metal (660°C). The AC cycle alternates between Electrode Positive (EP) and Electrode Negative (EN). The EP portion of the cycle effectively "blasts" the oxide layer off the surface (the cleaning phase), while the EN portion provides the deep penetration needed for fusion (the heating phase).

III. MIG and MAG Welding (GMAW): The Industrial Workhorses

Metal Inert Gas (MIG) and Metal Active Gas (MAG) welding are subcategories of Gas Metal Arc Welding (GMAW). These processes were developed to overcome the slow production speeds inherent in TIG and Stick welding. The hallmark of GMAW is a continuously fed consumable wire electrode that serves as both the arc-starter and the filler material. This wire is fed from a spool by a motorized wire feeder through a flexible cable to the welding gun.

1) The Productivity Advantage

The primary advantage of MIG and MAG welding is the significantly higher deposition rate—the weight of metal added to the joint per hour. Because the wire is fed automatically, the welder does not need to stop to replace electrodes or manually feed rods, allowing for long, continuous weld beads. This makes GMAW the backbone of high-volume industries such as automotive manufacturing, structural steel fabrication, and shipbuilding.

2) Metal Transfer Modes in GMAW

A critical aspect of MIG/MAG welding is the manner in which the molten wire travels across the arc to the workpiece, known as the transfer mode. These modes are dictated by the voltage, current, and gas composition used:

• Short-Circuiting Transfer: At lower voltages and currents, the wire touches the weld pool, causing a short circuit that melts the end of the wire. This occurs 20 to 200 times per second, making it ideal for thin materials and welding in vertical or overhead positions due to the fast-cooling pool.

• Globular Transfer: Used with high concentrations of CO2, large droplets of metal (larger than the wire diameter) are projected erratically. This mode is prone to heavy spatter but provides high penetration on thick steel.

• Spray Transfer: At high voltage and Argon-rich shielding, the metal travels as a fine mist of droplets. This provides a very stable arc with deep penetration and high deposition, but generates intense heat and is usually limited to flat and horizontal positions.

• Pulsed Transfer: A sophisticated mode where the machine pulses between high and low currents. This allows for "one drop per pulse," providing the benefits of spray transfer (clean, deep penetration) at lower average heat levels, making it versatile for both thin and thick sections.

IV. Comparative Analysis: TIG vs. MIG vs. MAG

Selecting the appropriate welding method requires a balanced evaluation of material thickness, production volume, and the required aesthetic finish. While TIG is often viewed as the "art of welding" due to its clean, beautiful beads, it is often economically unfeasible for large-scale structural projects.

1) Skill Requirements and Learning Curve

MIG welding is widely considered the easiest process for beginners to learn. The machine handles most of the complex variables (wire feed speed and voltage), allowing the operator to focus on torch angle and travel speed. TIG welding, conversely, sits at the opposite end of the spectrum, requiring high levels of manual dexterity and a deep understanding of arc physics to avoid contaminating the tungsten electrode or overheating the workpiece.

2) Speed and Efficiency Factors

In an industrial setting, time is often the primary cost driver. TIG welding is inherently slow because of the manual filler addition and the need for precision. MIG and MAG welding can be automated or semi-automated, with robotic systems capable of moving at speeds several times faster than a human operator. For heavy steel plates, MAG welding with a 1.2mm or 1.6mm wire can achieve deposition rates that would require multiple passes and significantly more time if attempted with TIG.

3) Weld Quality and Aesthetics

TIG welding is unparalleled in its ability to produce high-quality, defect-free welds with a "stacked dimes" appearance. Because there is no spatter, the post-weld cleaning process is minimal, often requiring only a quick wipe or light wire brushing. MIG and MAG welds, while strong, are generally more robust and slightly rougher in appearance. MAG welding, especially with CO2, can result in significant spatter (small balls of metal stuck to the base material), which may require grinding or anti-spatter sprays to manage.

V. Operational Best Practices and Safety

Regardless of the chosen process, the success of a gas-shielded weld depends on proper equipment maintenance and surface preparation. Unlike traditional stick welding, gas-shielded processes are highly sensitive to surface contaminants and environmental conditions.

1) Surface Preparation and Cleaning

The presence of oil, moisture, rust, or paint on the base metal is the leading cause of weld defects. For MIG and TIG welding of aluminum, cleaning is mandatory; the oxide layer must be removed with a dedicated stainless steel wire brush that hasn't been used on other metals. For steel fabrication using MAG, while the process is more forgiving, heavy rust or scale should be ground down to ensure proper fusion and prevent porosity.

2) Gas Flow Management

Flow meters are essential accessories that allow for precise control of shielding gas. A common mistake is setting the flow rate too high, assuming more gas equals more protection. In reality, excessive flow creates turbulence at the nozzle, which actually pulls atmospheric air into the shield, causing porosity. Conversely, in windy outdoor conditions, a standard flow rate is insufficient, requiring the use of windbreaks or a switch to a gasless process like Flux-Cored Arc Welding (FCAW).

3) Personal Protective Equipment (PPE)

Arc welding produces intense ultraviolet (UV) and infrared (IR) radiation that can cause "welder's flash" (corneal burns) and skin damage similar to severe sunburn. Auto-darkening helmets are the standard for modern welders, allowing for clear visibility during setup and instant protection when the arc is struck. Additionally, the use of leather jackets, gloves, and respiratory protection is critical, as gas-shielded welding of certain materials—particularly galvanized steel or certain alloys—can produce toxic fumes.

VI. Troubleshooting Common Weld Defects

Even with advanced equipment, human error or improper settings can lead to defects that compromise structural safety.

1) Porosity: The "Swiss Cheese" Look

Porosity is the most common issue in gas-shielded welding. It appears as small holes on the surface or inside the weld bead. The root cause is almost always gas related: either a lack of shielding gas due to an empty cylinder, a clogged nozzle, a leak in the hose, or environmental drafts blowing the gas away.

• Remedy: Check the flow meter for a reading between 8-12 L/min, ensure the nozzle is clean of spatter, and use a "push" torch angle to keep the gas directed over the leading edge of the pool.

2) Undercut and Burn-through

Undercutting occurs when the base metal melts at the edges of the weld but isn't filled by the filler material, leaving a weak groove. This is typically caused by high amperage or a travel speed that is too fast. Burn-through is the opposite problem, where the arc melts completely through the material, leaving a hole. This is especially common on materials thinner than 3mm.

• Remedy: To fix undercut, lower the amperage or voltage and slow the travel speed. To prevent burn-through, increase travel speed or use a "pulsed" current setting if the machine allows.

3) Lack of Fusion and Lack of Penetration

Lack of fusion occurs when the weld metal fails to bond with the base metal, creating a high-risk structural flaw. Lack of penetration means the weld hasn't reached the bottom of the joint. Both are often caused by "running too cold"—not providing enough heat for the thickness of the metal.

• Remedy: Increase the voltage or amperage settings. For thick materials, grinding a "V" or "U" groove into the joint before welding can provide better access for the arc to reach the root of the joint.

VII. Trends Shaping Welding in 2026 and Beyond

The welding industry is currently experiencing a technological renaissance driven by the intersection of material science and digital automation.

1) Increased Automation and Cobots

The shortage of skilled manual welders has accelerated the adoption of robotic welding systems. Collaborative robots, or "cobots," are designed to work safely alongside humans without the need for extensive safety cages. These systems are particularly effective for repetitive MIG and MAG tasks, allowing human operators to focus on more complex, one-off projects.

2) Digital Twins and AI

"Industry 4.0" has introduced Digital Twin technology to the fabrication floor. By creating a virtual replica of a welding cell, engineers can simulate heat distortion and arc behavior before a single part is manufactured. Furthermore, Artificial Intelligence (AI) is now being used to analyze arc stability in real-time, automatically adjusting parameters to prevent defects like porosity or lack of fusion before they occur.

3) Green Welding and Sustainability

Sustainability has shifted from a corporate buzzword to an operational requirement. New energy-efficient inverter power sources consume up to 30% less electricity than older transformer-based machines. Additionally, "low-emission" welding processes and the recycling of scrap metal are helping fabrication shops reduce their carbon footprint while lowering operational costs.

VIII. Advanced Industrial Solutions: Megmeet Welding Technology

For industrial users demanding the highest levels of precision and efficiency, Megmeet Welding Technology provides a suite of advanced digital inverter solutions. Megmeet has distinguished itself by integrating multidisciplinary expertise in power electronics and arc physics to produce machines that excel in extreme environments.

1) Key Technical Features of Megmeet Machines

Megmeet welding machines utilize a high-frequency inverter design, with hardware systems operating at up to 180kHz. This high frequency, combined with proprietary digital control algorithms, allows for exceptionally precise droplet transfer and arc stability.

A core innovation is Megmeet's Low-Spatter-Arc (LSA) technology. In standard MIG/MAG welding, spatter is often caused by "liquid-bridge bursting"—the violent separation of molten metal droplets from the wire. Megmeet's software precisely controls the "chopper" current during this phase, reducing spatter by up to 90% compared to conventional DC machines. This significantly reduces the need for secondary grinding operations, improving overall factory throughput.

2) Reliability in Harsh Environments

Megmeet machines are built for durability, featuring lightning and surge protection (withstand 6000V/3000A) and the ability to operate reliably in temperatures ranging from -39°C to +50°C. Their energy-efficient IGBT inverters meet global green manufacturing standards, offering a high power factor (0.94) and significant long-term ROI through reduced electricity consumption.

IX. FAQs

Q1: Which is better: TIG or MIG?

• The choice depends on the priorities of the project. TIG is better for thin, high-precision, and aesthetic work on stainless steel and aluminum. MIG is better for high-volume production, thick materials, and where speed is prioritized over aesthetic perfection.

Q2: Why is Argon used instead of Carbon Dioxide for aluminum?

• Aluminum is a highly reactive metal. CO2 is an active gas that would react with the molten aluminum, leading to extreme oxidation and a brittle, unusable weld. Pure Argon (an inert gas) is required to maintain a sterile environment for the aluminum pool.

Q3: Can I use a MIG welder to weld TIG?

• Generally, no. MIG and TIG use fundamentally different power delivery systems. MIG is a Constant Voltage (CV) process, while TIG is a Constant Current (CC) process. However, "multi-process" machines are available that contain the internal circuitry to switch between both modes.

Q4: What is the most common cause of porosity?

• The most common cause is a lack of shielding gas coverage, often caused by drafts, a clogged nozzle, or an empty gas tank.
