Arc welding is the backbone of modern infrastructure, manufacturing, and artistic creation. From the towering skyscrapers that define our skylines to the specialized machinery used in deep-sea exploration, the ability to join metals with the strength of an electric arc is one of the most significant technological achievements in industrial history.
Whether you are a hobbyist looking to start your first home project or a professional seeking to refine your technical knowledge, this Arc Welding Guide provides a comprehensive deep dive into the mechanics, processes, and safety protocols of arc welding.
I. What is Arc Welding?
At its most fundamental level, arc welding is a process used to join metal to metal by using electricity to create enough heat to melt metal, and the melted metals when cool result in a binding of the metals. It is a type of welding that uses a welding power supply to create an electric arc between an electrode and the base material to melt the metals at the welding point.
The "arc" is essentially a continuous spark that occurs when electricity jumps across a gap. In this process, the gap is between the welding electrode (the "rod" or "wire") and the workpiece. This arc reaches temperatures of up to 6,500°F (3,593°C), which is more than enough to melt most industrial metals instantly.
II. How Arc Welding Works: The Science of the Circuit?

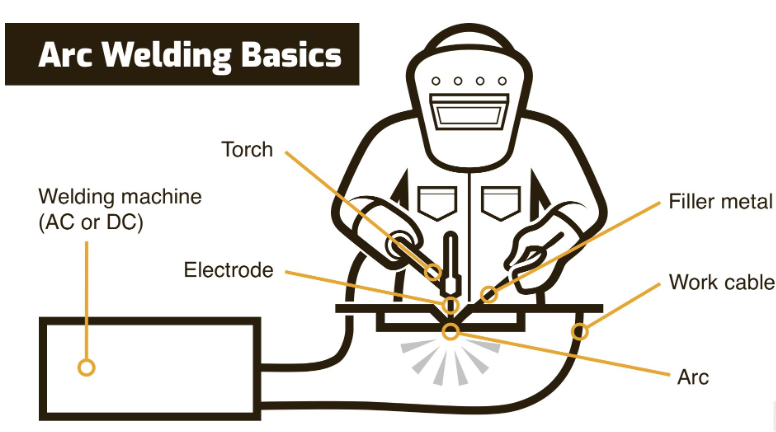

To understand arc welding, you must view it as a complete electrical circuit. The welding machine acts as the power source, with two cables attached:
When the electrode touches the metal and is then pulled back slightly, the air gap is ionized, allowing the current to flow through the air. This resistance creates the intense heat required for fusion.
Constant Current (CC) vs. Constant Voltage (CV)
Constant Current (CC): Typically used for Manual Metal Arc (MMA) or TIG welding. It keeps the current (amperage) relatively steady even if the arc length fluctuates slightly due to human movement.
Constant Voltage (CV): Used for MIG welding. It maintains a consistent voltage, which helps keep the arc stable while the wire is fed automatically.
III. Core Types of Arc Welding Processes
While all arc welding relies on the electric arc, the delivery method and the way the weld pool is protected vary significantly. Here are the most common methods detailed in this Arc Welding Guide.
1. Shielded Metal Arc Welding (SMAW / Stick)
Often referred to as "Stick" welding or Manual Metal Arc (MMA), this is the oldest and most versatile process. It uses a consumable electrode covered with a chemical flux.
How it works: As the electrode burns, the flux coating disintegrates, releasing a shielding gas that protects the weld pool from atmospheric contamination (oxygen and nitrogen). It also leaves behind a layer of "slag" that must be chipped away after the weld cools.
Best for: Outdoor work, rusty or dirty metal, and heavy structural steel.
2. Gas Metal Arc Welding (GMAW / MIG)
MIG (Metal Inert Gas) welding is the most popular choice for beginners and high-speed manufacturing.
How it works: A thin wire is fed through a welding gun at a pre-set speed. Simultaneously, an inert shielding gas (usually Argon or a CO2 mix) flows through the gun to protect the weld.
Best for: Thin-to-medium sheet metal, automotive repair, and fabrication where speed is a priority.
3. Gas Tungsten Arc Welding (GTAW / TIG)
TIG (Tungsten Inert Gas) welding is prized for its precision and aesthetic results.
How it works: It uses a non-consumable tungsten electrode. The welder holds the torch in one hand to create the arc and manually feeds a filler rod into the pool with the other.
Best for: Stainless steel, aluminum, thin-gauge materials, and "show" welds where appearance is critical.
4. Flux-Cored Arc Welding (FCAW)
FCAW is similar to MIG but uses a hollow wire filled with flux.
How it works: The flux inside the wire provides the shielding, similar to Stick welding. Some versions also use an external shielding gas ("Dual Shield").
Best for: Heavy-duty construction and shipbuilding, especially in windy conditions where MIG gas would blow away.
IV. Essential Equipment for Arc Welding
To begin arc welding, you need a specific toolkit. Safety and functionality are equally important here.
1. The Power Source
Modern welding machines are often "Inverter" based. Unlike old, heavy transformer machines, inverters are portable, energy-efficient, and offer "Hot Start" and "Arc Force" features that make it easier for beginners to strike an arc without the electrode sticking.
2. Personal Protective Equipment (PPE)
Safety is non-negotiable. The arc produces ultraviolet (UV) and infrared (IR) radiation that can cause "Arc Eye" (essentially a sunburn on the cornea) and skin burns.
Auto-Darkening Helmet: Switches from light to dark in milliseconds when the arc is struck.
Welding Gloves: Heavy-duty leather to protect against sparks and heat.
Welding Jacket/Apron: Made of flame-resistant cotton or leather.
Respirator: Necessary when welding galvanized steel or in poorly ventilated areas to avoid "metal fume fever."
V. Step-by-Step: How to Perform a Basic Arc Weld
Follow these steps to ensure a successful fusion.
1. Preparation
Metal must be clean. Use a wire brush or angle grinder to remove rust, paint, and oil. Poorly cleaned metal leads to porosity (tiny holes in the weld) and weak joints.
2. Striking the Arc
In Stick welding, there are two methods:
3. Maintaining Arc Length
The distance between the electrode and the metal should roughly equal the diameter of the electrode's core wire. If the arc is too long, it will crackle and splatter; if too short, the electrode will stick.
4. The Travel Angle and Speed
Hold the electrode at a 5–15 degree angle in the direction of travel. Move at a consistent speed—too fast results in a thin, weak bead; too slow creates excessive heat and a wide, lumpy bead.
VI. Common Arc Welding Defects and How to Avoid Them
Even experienced welders encounter issues. Recognizing them is the first step toward mastery.
| Defect | Appearance | Cause | Solution |
| Porosity | Tiny holes (sponge-like) | Contamination or lack of gas | Clean metal; check gas flow |
| Undercut | A groove melted into the base | Amperage too high | Lower current; slow down |
| Incomplete Fusion | Weld didn't "stick" to sides | Amperage too low | Increase current; prep joints |
| Slag Inclusion | Bits of flux trapped in weld | Poor cleaning between passes | Chip slag thoroughly; adjust angle |
VII. Advanced Considerations: Material Science
Different metals react differently to the heat of arc welding.
Mild Steel: The easiest to weld; highly forgiving of temperature changes.
Stainless Steel: Requires careful heat management to prevent "carbide precipitation" (which ruins its corrosion resistance). TIG is usually preferred.
Aluminum: A high thermal conductor that requires high heat initially and specialized "AC" (Alternating Current) for TIG welding to break through the oxide layer.
VII. Why Choose Arc Welding?
The versatility of arc welding is unmatched. Because the equipment can be relatively simple (especially for Stick welding), it is used in:
Maintenance and Repair: Fixing farm equipment or industrial machinery on-site.
Construction: Joining I-beams and reinforcing bars.
Pipeline Engineering: Creating leak-proof joints across thousands of miles.
Artistic Sculpture: The precision of TIG allows for intricate metalwork.
Conclusion:
This Arc Welding Guide serves as a roadmap, but the true skill comes from "hood time"—the hours spent practicing the coordination between eye and hand. Arc welding is a blend of science and craftsmanship; it requires an understanding of electrical circuits and a feel for the molten metal.
By choosing the right process for your material, prioritizing safety, and focusing on the fundamentals of arc length and travel speed, you can master one of the most powerful tools in the modern world. Whether you are building a bridge or a bracket, the strength of the arc is in your hands.
