In the diverse world of industrial fabrication, one process stands as the foundation of modern metalworking: Shielded Metal Arc Welding (SMAW). Often referred to colloquially as "Stick welding," SMAW is one of the oldest, most versatile, and most widely used welding processes in existence today. From the construction of massive skyscrapers and transcontinental pipelines to small-scale farm repairs and home workshops, SMAW remains a dominant force.
This comprehensive guide explores the mechanics, equipment, advantages, and technical nuances of Shielded Metal Arc Welding, providing the insights necessary to master this essential trade skill.
.jpg "Shielded Metal Arc Welding (SMAW).jpg")

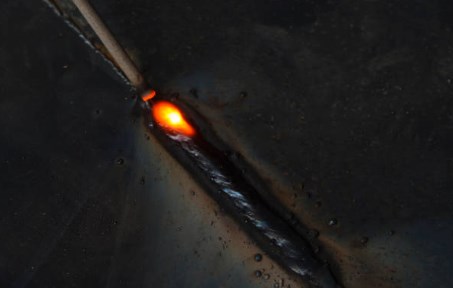

Shielded Metal Arc Welding (SMAW)
I. What is Shielded Metal Arc Welding (SMAW)?
Shielded Metal Arc Welding (SMAW) is a manual arc welding process that uses a consumable electrode covered with a flux to lay the weld. An electric current, in the form of either alternating current (AC) or direct current (DC) from a welding power supply, is used to form an electric arc between the electrode and the metals to be joined.
As the weld is laid, the flux coating of the electrode disintegrates, giving off vapors that serve as a shielding gas and providing a layer of slag, both of which protect the weld area from atmospheric contamination (oxygen and nitrogen).
The Physics of the Arc
The process begins when the welder strikes the electrode against the workpiece, creating a short circuit that initiates the electric arc. This arc generates intense heat—often exceeding 6,000°F (3,315°C)—which simultaneously melts the tip of the electrode and the surface of the base metal. The molten metal from the electrode travels across the arc into the "weld pool," creating the joint.
II. Essential Welding Equipment for SMAW
One of the primary reasons for the enduring popularity of Shielded Metal Arc Welding is its simplicity. Compared to MIG (GMAW) or TIG (GTAW) welding, which require gas cylinders, regulators, and complex wire-feeding mechanisms, the SMAW setup is remarkably portable and straightforward.
1) The Welding Power Source
The heart of the SMAW system is the power supply. Modern welding machines are typically constant current (CC) machines. This ensures that the current (amperage) remains relatively stable even if the arc length fluctuates slightly due to the welder's hand movement.
DC (Direct Current): Preferred for most applications. DC+ (Electrode Positive) provides deeper penetration, while DC- (Electrode Negative) offers faster deposition rates on thinner metals.
AC (Alternating Current): Primarily used for hobbyist machines or when welding in conditions where "arc blow" (magnetic interference) is a problem.
2) The Electrode Holder and Ground Clamp
The electrode holder (the "stinger") is an insulated device used to hold the consumable electrode and conduct current to it. Conversely, the ground clamp completes the electrical circuit by attaching to the workpiece.
3) The Consumable Electrode (The Stick)
The electrode consists of a solid metal core wire surrounded by a flux coating. The composition of the core wire usually matches the base metal being welded. The flux coating serves several critical functions:
Shielding: Creates a gas cloud to protect the molten pool.
Deoxidization: Removes impurities from the molten metal.
Slag Formation: Covers the cooling weld to prevent oxidation and slow the cooling rate.
Arc Stabilization: Contains elements that help maintain a steady arc.
III. Understanding Electrode Classification
To succeed in Shielded Metal Arc Welding, you must know how to select the right electrode. The American Welding Society (AWS) uses a standardized numbering system (e.g., E6010, E7018).
E: Stands for Electrode.
First Two Digits (e.g., 60 or 70): Represents the minimum tensile strength in thousands of pounds per square inch (e.g., 60,000 psi).
Third Digit: Indicates the welding position. "1" means all positions; "2" means flat and horizontal only.
Fourth Digit: Indicates the type of coating and the current required.
Common Electrodes:
6010: A "fast-freeze" electrode with deep penetration. Excellent for rusty or dirty metal and pipe welding.
7018: A low-hydrogen electrode that produces high-quality, crack-resistant welds. It is the industry standard for structural steel.
IV. The SMAW Process: Step-by-Step Execution
Mastering SMAW requires coordination and a keen eye. The quality of a stick weld depends on five essential variables, often remembered by the acronym CLAMS: Current, Length of arc, Angle of electrode, Manipulation, and Speed of travel.
Step 1: Preparation
Safety first. Welders must wear a welding helmet with the correct shade lens, leather gloves, and flame-resistant clothing. The work area should be cleared of flammable materials. While SMAW is more forgiving of rust than other processes, cleaning the base metal with a wire brush or grinder will always yield a superior result.
Step 2: Striking the Arc
There are two methods to start the arc:
Step 3: Maintaining the Arc
Once the arc is established, the welder must maintain a consistent "arc length"—the distance between the electrode tip and the weld pool. A general rule is that the arc length should be approximately the same as the diameter of the core wire.
Step 4: Angle and Travel
The electrode should be tilted 5 to 15 degrees in the direction of travel (drag angle). Moving too fast results in a thin, weak bead; moving too slowly creates excessive heat and a wide, unmanageable puddle.
Step 5: Slag Removal
After the weld cools, the solidified slag must be chipped away using a chipping hammer and cleaned with a wire brush to reveal the finished bead.
V. Advantages of Shielded Metal Arc Welding
Why is SMAW still used in an era of automated laser welding? Its unique characteristics make it irreplaceable in specific environments.
Portability: Since no external shielding gas is required, a welder only needs the power source and cables. This makes it ideal for remote field work.
All-Weather Capability: Unlike MIG or TIG, which are easily disrupted by wind, the heavy gas shield generated by SMAW flux allows for welding in windy or outdoor conditions.
Versatility: By simply changing the electrode, a welder can switch between welding steel, cast iron, stainless steel, and nickel alloys.
Cost-Effective: SMAW equipment is generally the most affordable to purchase and maintain.
VI. Applications and Industry Use
Shielded Metal Arc Welding is the "workhorse" of several major industries:
Construction: Heavy structural steel for bridges and buildings is almost always joined using SMAW (specifically 7018 electrodes).
Pipelines: While automated processes are rising, manual stick welding is still a staple for cross-country oil and gas pipeline installation.
Maintenance and Repair: From repairing heavy machinery on a mining site to fixing a gate on a farm, SMAW is the go-to for quick, reliable repairs on thick materials.
Shipbuilding: The ability to weld in all positions (overhead, vertical, flat) makes SMAW essential in the complex geometry of a ship’s hull.
VII. Challenges and Limitations
Despite its strengths, SMAW has drawbacks that must be managed:
Low Duty Cycle: Welders must stop frequently to change electrodes and chip away slag, making it slower than continuous wire-feed processes.
Spatter: SMAW produces more spatter than other methods, requiring more post-weld cleanup.
Learning Curve: Maintaining a consistent arc length while the electrode is literally disappearing (melting away) requires significant manual dexterity.
Fumes: The burning flux produces significant smoke and fumes, necessitating proper ventilation or respiratory protection.
Conclusion
While newer technologies offer higher speeds and cleaner finishes, Shielded Metal Arc Welding remains a fundamental skill for any professional welder. Its reliability in harsh environments and its sheer simplicity ensure that it will remain a cornerstone of the fabrication industry for decades to come.
For those looking to enter the trade, mastering "the stick" provides a deep understanding of heat control and metal behavior that serves as the perfect foundation for all other welding processes. Whether you are building the infrastructure of tomorrow or repairing the tools of today, SMAW is an art form that brings strength and permanence to the world of metal.
