In the complex world of industrial fabrication, the success of a weld is determined by far more than just a steady hand and a clean workspace. One of the most critical, yet often misunderstood, variables in the electrical circuit is polarity in welding.
Understanding polarity is essential for any professional looking to achieve deep penetration, minimize spatter, and ensure the structural integrity of a joint. Whether you are working with Shielded Metal Arc Welding (SMAW), Gas Tungsten Arc Welding (GTAW), or Gas Metal Arc Welding (GMAW), the direction of the electrical current dictates how heat is distributed between the electrode and the base metal.
This guide provides an in-depth technical analysis of welding polarity, exploring the different types, their effects on various materials, and how to choose the correct setting for your specific application.
I. What is Polarity in Welding?
At its core, welding is an electrical process. When you strike an arc, you are completing an electrical circuit where the current flows from the welding power source, through the electrode, across the arc, into the base metal, and back through the work clamp.
Polarity in welding refers to the direction of that current flow. In a Direct Current (DC) circuit, electricity flows in one direction. Because the circuit has a positive and a negative pole, the "polarity" determines which side—the electrode or the work piece—is positive and which is negative.
The importance of polarity lies in heat distribution. In an arc, the positive pole (anode) typically receives about 70% of the heat, while the negative pole (cathode) receives approximately 30%. By switching the polarity, you can control whether that intense heat is concentrated on the metal you are trying to melt or on the electrode you are using to fill the joint.

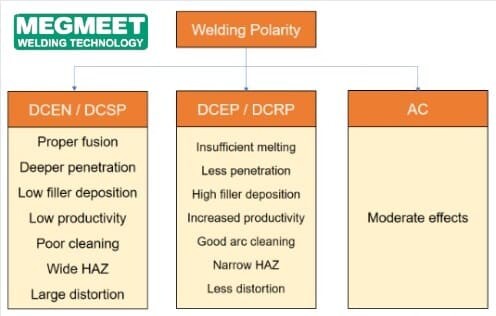

II. The Three Primary Types of Polarity
Depending on the power source and the welding process, there are three main configurations: DCEN, DCEP, and AC.
1. Direct Current Electrode Negative (DCEN)
Commonly referred to as "Straight Polarity," DCEN occurs when the electrode is connected to the negative terminal and the work piece is connected to the positive terminal.
Heat Distribution: Since the work piece is the positive pole, it receives the majority of the heat.
Performance: This results in deep penetration into the base metal. It is ideal for thick materials where a strong root pass is required.
Applications: Frequently used in TIG welding for steel and stainless steel, as it keeps the electrode cooler and allows for a sharper point, resulting in a more focused arc.
2. Direct Current Electrode Positive (DCEP)
Known as "Reverse Polarity," DCEP is the configuration where the electrode is positive and the work piece is negative.
Heat Distribution: The electrode receives approximately 70% of the heat.
Performance: This leads to a faster melt rate for the electrode (higher deposition rate) and shallower penetration into the base metal. The arc is typically more stable in DCEP, and it provides a "cleaning action" that helps remove oxides from the surface of the metal.
Applications: This is the standard setting for most MIG welding applications and many stick welding electrodes (such as E7018).
3. Alternating Current (AC)
In an AC circuit, the polarity rapidly switches back and forth between positive and negative. In a standard 60Hz environment, the polarity changes 120 times per second.
Heat Distribution: Because the current is constantly reversing, the heat is distributed evenly (50/50) between the electrode and the work piece.
Performance: AC provides a balance between penetration and cleaning action. It is also effective at preventing "arc blow," a phenomenon where magnetic fields cause the arc to wander.
Applications: AC is the industry standard for TIG welding aluminum, as the positive half of the cycle breaks up the heavy oxide layer on the aluminum's surface, while the negative half provides the penetration.
III. How Polarity Affects the Welding Process?
Choosing the wrong polarity isn't just a technical error; it can result in poor fusion, excessive spatter, and a weld that fails to meet safety standards. Here is how polarity in welding impacts the physical characteristics of the weld bead.
1) Penetration vs. Deposition
The most immediate effect of polarity is the shape of the weld nugget. If you need to join two thick plates of carbon steel, DCEN (Straight Polarity) is often preferred because the heat is driven into the plates. Conversely, if you are welding thin sheet metal, DCEP (Reverse Polarity) or AC might be better to prevent "burn-through," as less heat is directed at the base metal.
2) Arc Stability and Spatter
The stability of the arc is heavily dependent on the ionization of the gap between the electrode and the work. DCEP generally offers a smoother, more stable arc for processes like MIG and Stick. If you notice an erratic arc or an unusual amount of spatter that cannot be fixed by adjusting amperage, check your polarity. Using DCEN on a rod designed for DCEP will often result in a "harsh" arc and large droplets of molten metal being expelled from the pool.
3) Cleaning Action
When welding non-ferrous metals like aluminum or magnesium, a surface oxide layer acts as a barrier to fusion. The positive phase of a DCEP or AC cycle performs "cathodic cleaning." Electrons leaving the work piece actually blast the oxide layer off the surface, allowing the filler metal to bond with the clean base metal underneath.
IV. Polarity Recommendations by Welding Process
While the specific electrode or filler wire usually dictates the required setting, here are the general standards for the most common welding methods.
1) Stick Welding (SMAW)
Polarity in stick welding depends entirely on the chemical composition of the electrode's flux coating.
E6010: Usually DCEP for deep penetration in pipe welding.
E7018: Designed for DCEP to provide a smooth, low-hydrogen bead with high structural integrity.
E6013: Can often be used with AC, DCEN, or DCEP, making it a versatile choice for general repairs.
2) TIG Welding (GTAW)
Steel/Stainless Steel/Copper: Almost always DCEN. This keeps the tungsten electrode cool and focuses the heat on the joint for a narrow, deep weld.
Aluminum/Magnesium: Almost always AC. The switching polarity provides the necessary cleaning action while preventing the tungsten electrode from melting under the intense heat.
3) MIG Welding (GMAW)
Solid Wire (Gas-Shielded): Nearly always DCEP. This provides a stable arc, good bead wetting, and manageable penetration.
Flux-Cored Wire (Gas-Shielded): Typically DCEP.
Self-Shielded Flux-Cored (Inner-shield): Frequently DCEN. The internal flux is designed to work with the heat concentrated on the wire to vaporize the flux and create the shielding gas.
V. Troubleshooting Polarity Issues
If your weld quality is suffering, use this quick checklist to determine if polarity in welding is the culprit:
Excessive Spatter: If you are using a DCEP-rated electrode on DCEN, the arc will be unstable.
Lack of Penetration: If you are welding thick material with DCEP and the bead is "sitting" on top of the metal rather than fusing into it, you may need to switch to DCEN (if the electrode allows) or increase amperage.
Tungsten Melting: In TIG welding, if your tungsten electrode starts to ball up excessively or melt even at low amperages, you are likely accidentally in DCEP mode, which is putting too much heat into the torch.
Arc Blow: If the arc is being "pulled" away from the joint by magnetic forces (common in deep grooves or corners), switching to AC can help neutralize the magnetic field.
VI. The Strategic Importance of Correct Polarity
In professional fabrication environments, efficiency and quality are paramount. Using the correct polarity in welding reduces the need for post-weld grinding, prevents costly rework due to internal defects like lack of fusion, and ensures that the finished product can withstand its intended load.
By mastering the science of electron flow, welding operators can fine-tune their heat input to match the specific metallurgy and geometry of the project. Whether you are aiming for the deep-digging penetration of DCEN or the cleaning action and stability of DCEP, the polarity is the foundation upon which every successful arc is struck.
Summary Checklist for Polarity Selection
| Process | Typical Polarity | Primary Benefit |
| Stick (E7018) | DCEP | Arc stability, bead profile |
| Stick (E6010) | DCEP | Deep penetration |
| TIG (Steel) | DCEN | Sharp arc, cool electrode |
| TIG (Aluminum) | AC | Oxide cleaning |
| MIG (Solid Wire) | DCEP | Smooth arc, low spatter |
| Flux-Core (Self-Shield) | DCEN | Proper flux vaporization |
By understanding these fundamentals, you can optimize your welding machine settings to achieve professional-grade results every time you strike an arc. Understanding polarity in welding is not just about following a manual—it is about controlling the energy of the arc to create superior metal joins.
