All You Need To Know About Overhead Stick Welding (4G&4F)

Welding in a flat position is often the first skill a technician masters, but the true test of a professional's mettle is Overhead Stick Welding. Also known as Overhead SMAW (Shielded Metal Arc Welding), this technique is essential for structural steelwork, shipbuilding, and industrial pipeline maintenance where moving the workpiece is impossible.

In this comprehensive guide, we will break down the mechanics, safety protocols, and advanced techniques required to rank among the elite in out-of-position welding.

I. What is Overhead Stick Welding (4G and 4F)?

In the welding world, "overhead" refers to any weld where the face of the weld is downward, and the welder is working from beneath the joint. Under the AWS (American Welding Society) classification, this is categorized into two primary types:

1. 4G (Overhead Groove Weld): Used for butt joints where the edges of two plates are joined together, often requiring a V-groove or U-groove preparation.


2. 4F (Overhead Fillet Weld): Used for lap or T-joints where two metal surfaces meet at an angle (usually 90 degrees).

Why is Overhead SMAW So Difficult?

The primary antagonist in overhead welding is gravity. In a flat position, gravity helps the molten metal settle into the joint. In the 4G position, gravity works to pull the molten puddle out of the joint and onto the welder. Mastering this position requires a delicate balance of surface tension and arc force to "defy" gravity.

II. Essential Equipment and Parameters

Success in Overhead Stick Welding starts with the correct machine setup. Since you are fighting to keep the puddle small and fast-freezing, your settings will differ from those used in flat welding.

1) Amperage Settings

A common mistake is using the same amperage for overhead as you would for flat welding. For overhead SMAW, you should generally lower your amperage by 10-15%.

• Too Hot: The puddle becomes too fluid, increasing the risk of "grapes" (molten metal dripping) and undercut.

• Too Cold: You risk a lack of fusion and the electrode sticking to the base metal.

2) Electrode Selection

Not all electrodes are created equal for out-of-position work. You need "fast-freeze" or "fill-freeze" electrodes that solidify quickly.

• E6010 / E6011: These are "fast-freeze" electrodes with deep penetration. They are the gold standard for root passes in overhead pipe and plate welding because the puddle solidifies almost instantly.

• E7018: This is a low-hydrogen, "fill-freeze" electrode. While it produces a more fluid puddle than the 6010, its slag system is designed to support the puddle in the overhead position. It is the go-to for structural strength and cap passes.

III. The Mechanics of Defying Gravity

To keep the metal in the joint, you must master two physical principles: Arc Force and Surface Tension.

1) Keep a Tight Arc

The most critical tip for Overhead Stick Welding is to maintain a very short arc length. A long arc increases voltage and heat, making the puddle wider and more susceptible to gravity. By keeping the electrode almost touching the base metal, the "arc force" physically pushes the molten metal up into the joint.

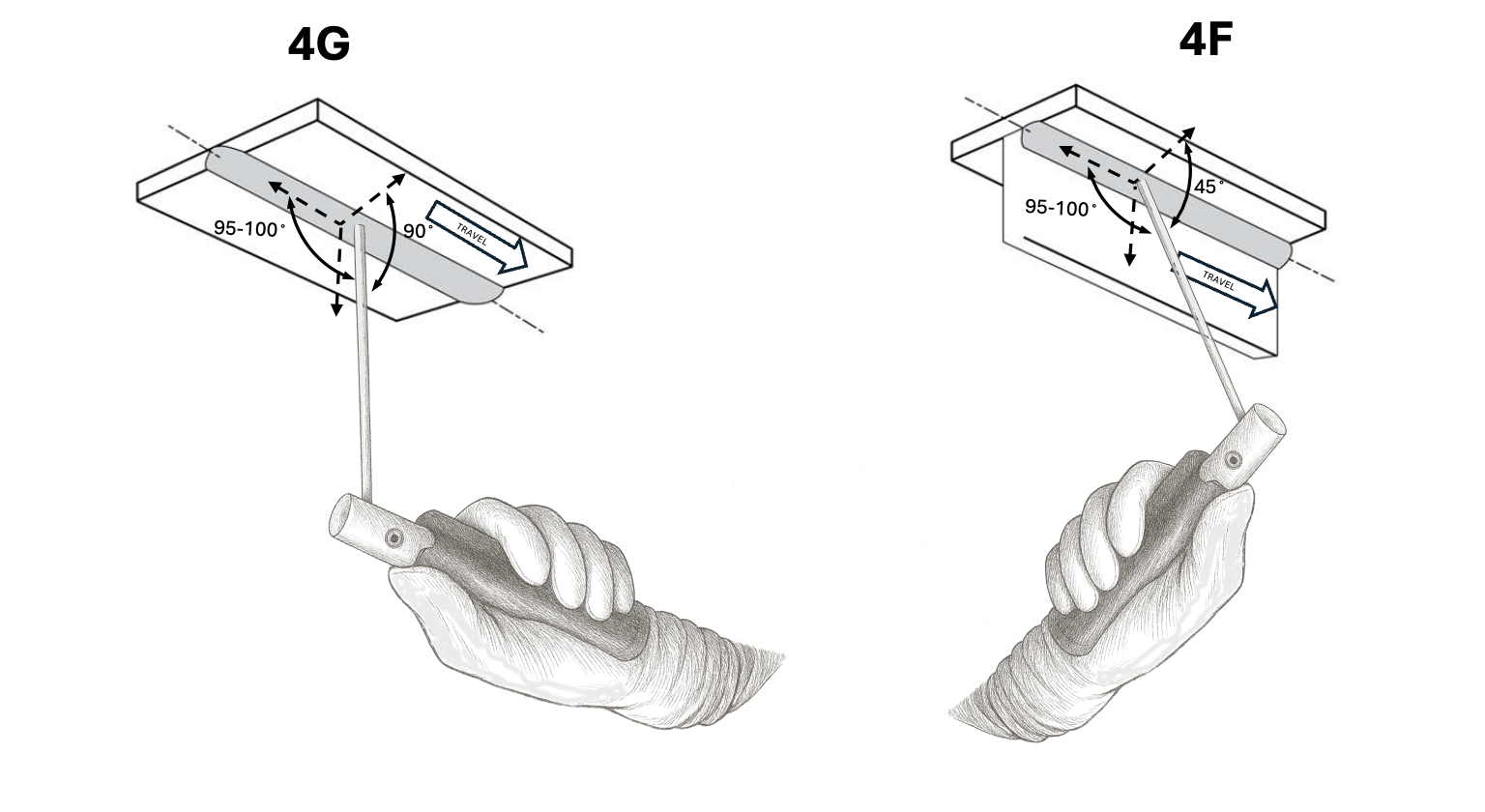

2) Electrode Angles

• Travel Angle: Maintain a 5 to 15-degree drag angle (pointing away from the direction of travel).

• Work Angle: For a 4F fillet weld, bisect the angle (45 degrees) between the two plates. For a 4G groove, keep the electrode perpendicular to the plates to ensure even heating on both sides of the groove.

IV. Advanced Techniques: Stringers vs. Weaving

How you move the electrode determines the integrity and appearance of the weld.

1) Stringer Beads

For most overhead applications, stringer beads (moving in a straight line with no side-to-side motion) are preferred. Stringers create a smaller, more manageable puddle that freezes quickly. This minimizes the risk of the metal sagging or dripping.

2) Weaving (The Whip-and-Pause)

• When using an E6010 electrode, a "whip-and-pause" technique is often used. You "whip" the electrode forward to create the arc and then "pause" back in the puddle to deposit metal. In overhead welding, the "pause" must be brief to prevent the puddle from getting too large.





• For E7018, if you must weave, keep it very tight. Wide weaves in the overhead position almost always result in undercut—a defect where the metal is burnt away at the edges of the weld but not replaced by filler metal.

V. Critical Safety and Positioning

Overhead welding is inherently more dangerous due to falling sparks and spatter.

• Body Positioning: Never stand directly under the weld. Position yourself to the side so that sparks fall away from your body.

• Cable Management: Drape the welding lead over your shoulder or a nearby support. The weight of a hanging cable can pull on your hand, causing instability and arm fatigue.

• PPE (Personal Protective Equipment): Leather Jackets/Capes: High-quality leather is mandatory.

• Welding Hood/Bib: Use a leather bib attached to the bottom of your helmet to protect your neck.

• Respirator: Fumes rise directly into your breathing zone in the overhead position; proper ventilation or a respirator is vital.

VI. Troubleshooting Common Overhead Defects

Conclusion

Mastering Overhead Stick Welding or Overhead SMAW is not about luck; it is about controlling the variables of heat, gravity, and motion. By selecting fast-freeze electrodes, maintaining a tight arc, and prioritizing your safety through correct positioning, you can produce X-ray quality welds in the most demanding environments.

The next time you face a 4G plate or a 4F joint, remember: stay comfortable, keep the puddle small, and let the arc force do the heavy lifting.
