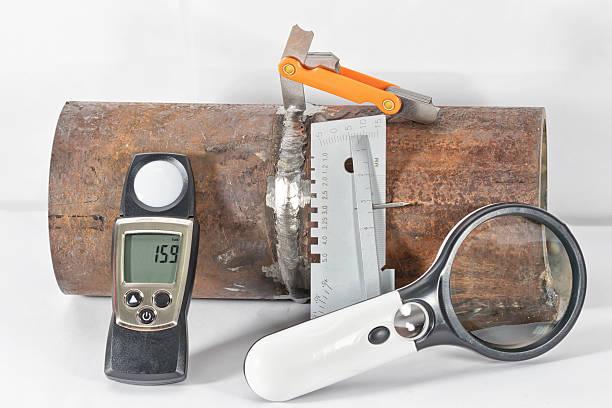

In the world of structural engineering, pressure vessels, and automotive manufacturing, the integrity of a metal joint is the line between success and catastrophe. A weld might look perfect on the surface, but internal defects can lead to structural failure under stress. This is where a rigorous Weld Quality Test becomes indispensable.
Whether you are preparing for a certified welding inspector (CWI) exam or optimizing a manufacturing production line, understanding the various methods for Testing for Welding Quality Assessment is critical. This guide explores the diverse landscape of welding quality inspection, from simple visual checks to advanced radiographic imaging.
I. The Importance of Weld Quality Testing
Why is a Weld Quality Test necessary? In short: safety and reliability. A weld must meet specific mechanical properties—such as tensile strength, ductility, and corrosion resistance—to perform its intended function.
The goals of testing for welding quality assessment include:
Compliance: Meeting international standards like AWS (American Welding Society) or ISO (International Organization for Standardization).
Safety: Ensuring that bridges, pipelines, and aircraft frames do not fail.
Cost Efficiency: Identifying defects early in the production cycle to avoid expensive rework or liability claims.
Process Optimization: Using test results to refine welding parameters and operator techniques.

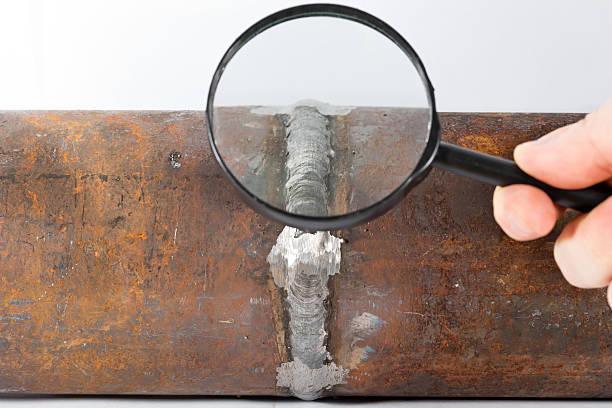

II. Visual Inspection (VT): The First Line of Defense
Visual Inspection is the most fundamental form of welding quality inspection. It is cost-effective, immediate, and requires no specialized machinery.
What to Look for During VT:
Before Welding: Check joint fit-up, cleanliness, and edge preparation.
During Welding: Monitor the arc stability, travel speed, and interpass temperature.
After Welding: Inspect for surface-level defects such as:
● Undercut: A groove melted into the base metal next to the weld toe.
● Overlap: Weld metal that protrudes beyond the toe without fusion.
● Surface Porosity: Small pinholes caused by trapped gas.
● Cracks: Visible longitudinal or transverse fractures.
While VT is essential, it cannot detect "subsurface" flaws. For that, we turn to more advanced methods.

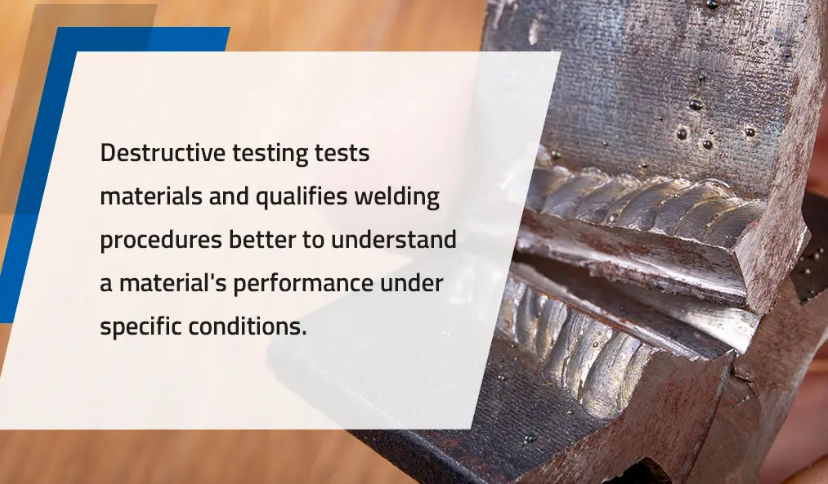

III. Destructive Testing (DT)
Destructive testing involves physically breaking or compromising a sample weld (often a "test coupon") to evaluate its mechanical properties. This is typically done during the Testing for Welding Quality Assessment phase of a new Procedure Qualification Record (PQR).
1) Bend Tests
The weld specimen is bent to a specific radius. This test evaluates the ductility of the weld and checks for internal discontinuities that open up under tension.
2) Tensile Tests
This test pulls a specimen until it breaks. It measures the ultimate tensile strength and ensures the weld is at least as strong as the base metal.
3) Macro-Etch Testing
A cross-section of the weld is cut, polished, and treated with a chemical acid (etchant). This reveals the internal grain structure, the depth of penetration, and the fusion zone, making it easy to spot lack of side-wall fusion or internal slag inclusions.
IV. Non-Destructive Testing (NDT)
NDT methods allow for welding quality inspection without damaging the final product. These are the gold standard for inspecting finished structures like skyscrapers or nuclear reactors.
1) Liquid Penetrant Inspection (LPI / PT)
A colored or fluorescent dye is applied to the weld surface. After a "dwell time," the excess is wiped away, and a developer is applied. The dye trapped in surface-level cracks "bleeds out," making even microscopic fractures visible to the naked eye.
2) Magnetic Particle Inspection (MPI / MT)
For ferromagnetic materials (like carbon steel), a magnetic field is established in the weld area. Fine iron particles are dusted over the surface. If there is a crack, the magnetic field leaks out, and the particles cluster at the defect.

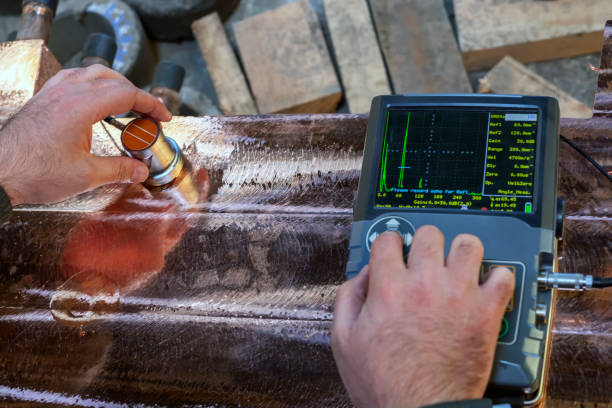

3) Ultrasonic Testing (UT)
UT uses high-frequency sound waves that travel through the metal. When the waves hit a defect (like a void or a crack), they reflect back to a transducer. By analyzing the time and intensity of the reflection, inspectors can determine the exact location and size of internal flaws.
4) Radiographic Testing (RT)
Commonly known as "X-raying" a weld, RT uses X-rays or Gamma rays to create a permanent film record of the weld's interior. Denser metal appears lighter, while voids, cracks, or slag inclusions appear as dark spots or lines.
V. Common Weld Defects and Their Causes
To master welding quality inspection, one must know what "failure" looks like.
| Defect | Description | Common Cause |
| Porosity | Tiny gas pockets/bubbles | Contaminated metal, damp electrodes, or loss of shielding gas. |
| Slag Inclusion | Non-metallic solids trapped in the weld | Improper cleaning between passes or poor torch angle. |
| Lack of Fusion | Weld metal doesn't fuse with base metal | Heat input too low or travel speed too high. |
| Incomplete Penetration | Weld doesn't reach the root of the joint | Poor joint design or too large an electrode. |
| Cracking | Fractures in the weld or HAZ | High stress, rapid cooling, or hydrogen embrittlement. |
VI. How to Implement a Quality Assessment Program
If you are responsible for Testing for Welding Quality Assessment in a professional shop, follow these steps:
Develop a WPS (Welding Procedure Specification): This is your "recipe" for a successful weld, detailing the gas, wire, voltage, and speed.
Qualify Your Welders: Ensure every operator has passed a performance qualification test for the specific joints they will be welding.
Establish an Inspection Schedule: Decide which welds need 100% NDT and which only require VT based on the criticality of the part.
Maintain Documentation: Keep detailed records of every Weld Quality Test. This is vital for insurance, liability, and continuous improvement.
VII. The Future of Welding Quality Inspection
The industry is moving toward "Real-Time Monitoring." Advanced power sources can now record electrical data (voltage/amperage) thousands of times per second. If the data drifts outside the "Golden Weld" parameters, the system alerts the inspector immediately.
Additionally, AI-assisted Radiography is becoming more common, using machine learning to identify defects on X-ray films faster and more accurately than the human eye.
Conclusion
A successful Weld Quality Test is the bridge between a finished piece of metal and a reliable engineered component. By combining the immediate feedback of visual inspection with the deep insights provided by ultrasonic and radiographic testing, manufacturers can ensure that every joint is fit for purpose.
Understanding Testing for Welding Quality Assessment is not just about catching mistakes—it's about building a culture of excellence where quality is baked into every arc strike. Whether you are looking for surface cracks with dye penetrant or internal voids with X-rays, the goal of welding quality inspection remains the same: total confidence in the strength of the bond.
