Pulsed Welding Technology Solves Sheet Metal Problems

In the realm of modern manufacturing, the challenges associated with welding thin sheet metal have long plagued engineers and fabricators. From heat distortion to burn-through and inconsistent weld quality, traditional welding methods often fall short when it comes to addressing the unique demands of sheet metal applications. However, with the advent of pulsed welding technology, a new era of precision and control has emerged, offering innovative solutions to age-old problems.

I. Introduction to Pulsed Welding Technology

1) What is Pulsed Welding?

Pulsed welding, also known as pulse arc welding, is a specialized welding process that involves the intermittent delivery of current and voltage to the welding arc. Unlike conventional welding methods that maintain a constant arc, pulsed welding alternates between high and low energy pulses, allowing for greater control over heat input and weld penetration.

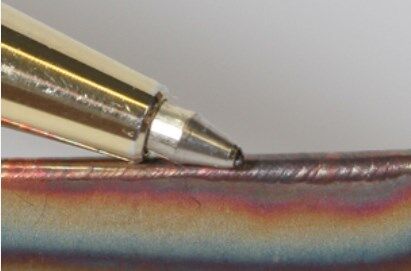

Pulsed Welding Sheet Metal.jpg

2) Development of Pulsed Welding Technology

The development of pulsed welding technology can be traced back to the mid-20th century when researchers began exploring ways to improve weld quality and efficiency. Early experiments focused on modulating the welding current to achieve better control over the weld pool and reduce heat-affected zones. Over time, advancements in electronics and welding equipment led to the commercialization of pulsed welding systems for industrial applications.

3) Importance of Pulsed Welding in Modern Manufacturing

In today's competitive manufacturing landscape, achieving high-quality welds with minimal distortion and defects is paramount. Pulsed welding technology offers several advantages over traditional welding methods, including enhanced control, improved productivity, and superior weld quality. As industries continue to demand lighter, stronger, and more precise components, the role of pulsed welding in solving sheet metal problems becomes increasingly crucial.

II. Advantages of Pulsed Welding

1) Enhanced Control Over Heat Input

One of the key benefits of pulsed welding is its ability to provide precise control over heat input. By modulating the energy delivered to the welding arc, operators can effectively manage the temperature of the weld pool, reducing the risk of overheating and distortion.

2) Minimization of Distortion and Warping

Heat distortion and warping are common challenges in sheet metal welding, particularly with thin materials. Pulsed welding allows for finer control over the heat-affected zone, minimizing distortion and ensuring dimensional accuracy in the finished product.

3) Reduction of Spatter and Splatter

Spatter and splatter, caused by excessive heat and improper weld pool control, can mar the appearance of welded joints and require time-consuming cleanup. Pulsed welding helps mitigate these issues by delivering energy to the arc in controlled pulses, resulting in cleaner, more precise welds.

4) Improved Weld Quality and Aesthetics

The precise control afforded by pulsed welding technology translates into higher weld quality and improved aesthetics. Weld beads are more uniform, with reduced undercutting and porosity, leading to stronger, more reliable joints.

5) Increased Productivity and Efficiency

By optimizing heat input and minimizing downtime for cleanup and rework, pulsed welding technology boosts productivity and efficiency in sheet metal fabrication. Operators can achieve higher deposition rates and faster travel speeds without sacrificing weld quality.

III. Challenges in Sheet Metal Welding

1) Thin Material Thickness

Sheet metal, typically defined as metal with a thickness of less than 6 mm (0.25 inches), presents unique challenges for welding. Its thinness makes it susceptible to heat distortion, burn-through, and warping, requiring precise control over the welding process.

2) Heat Distortion and Warping

During welding, the intense heat generated by the arc can cause sheet metal to distort and warp, compromising the integrity of the welded joint. Controlling heat input and minimizing thermal gradients are critical for preventing distortion and ensuring dimensional accuracy.

3) Burn-Through and Blowouts

Excessive heat and improper welding parameters can lead to burn-through, where the welding arc penetrates completely through the material, creating holes or voids in the weld. Blowouts, caused by the expulsion of molten metal from the weld pool, are another common issue in sheet metal welding.

4) Difficulty in Controlling Heat Input

Traditional welding methods, such as constant voltage (CV) or constant current (CC) welding, provide limited control over heat input, making it challenging to weld thin materials without causing damage. Achieving the right balance between penetration and heat-affected zone size requires precise adjustment of welding parameters.

5) Oxidation and Contamination Issues

Sheet metal welding often takes place in environments where oxidation and contamination are prevalent, leading to poor weld quality and reduced mechanical properties. Proper shielding gas selection and delivery methods are essential for protecting the weld zone from atmospheric contaminants.

IV. Introduction to Sheet Metal Welding

1) Overview of Sheet Metal Materials and Applications

Sheet metal encompasses a wide range of materials, including steel, aluminum, copper, and stainless steel, among others. Its versatility and formability make it ideal for various applications, such as automotive body panels, aircraft components, electronics enclosures, and architectural cladding.

2) Common Welding Methods for Sheet Metal

Several welding processes are commonly used for sheet metal fabrication, each with its advantages and limitations. These include gas metal arc welding (GMAW), gas tungsten arc welding (GTAW), laser welding, and resistance spot welding, among others.

3) Importance of Precision and Accuracy in Sheet Metal Welding

Precision and accuracy are paramount in sheet metal welding, where tight tolerances and minimal distortion are critical for ensuring proper fit and function of assembled components. Advanced welding techniques, such as pulsed welding, offer the precision needed to meet the demanding requirements of modern manufacturing.

V. How Pulsed Welding Addresses Sheet Metal Challenges

1) Controlling Heat Input with Pulsed Waveform

Pulsed welding technology enables precise control over heat input by modulating the welding current and voltage in discrete pulses. This allows operators to tailor the energy delivered to the weld pool, minimizing the risk of overheating and distortion while ensuring adequate penetration.

2) Minimizing Distortion and Warping Through Pulse Frequency Adjustments

By adjusting the frequency of the welding pulses, operators can minimize distortion and warping in sheet metal welds. Higher pulse frequencies result in shorter pulse durations and reduced heat input, making them suitable for thin materials and intricate weld geometries.

3) Preventing Burn-Through and Blowouts with Pulse Duration Modulation

Pulsed welding systems offer flexibility in pulse duration modulation, allowing operators to tailor the energy delivered to the weld pool based on the thickness and composition of the sheet metal. Shorter pulse durations are effective for preventing burn-through, while longer pulses ensure adequate fusion and penetration.

4) Reducing Oxidation and Contamination with Controlled Shielding Gas Delivery

Proper shielding gas selection and delivery methods are essential for protecting the weld zone from oxidation and contamination. Pulsed welding systems incorporate advanced gas control features, such as pulse synchronization and gas pre-flow/post-flow, to ensure optimal shielding gas coverage and purity.

VI. Applications of Pulsed Welding in Sheet Metal Fabrication

1) Automotive Industry: Body Panels, Chassis Components, and Exhaust Systems

The automotive industry relies heavily on sheet metal fabrication for manufacturing body panels, chassis components, and exhaust systems. Pulsed welding technology offers automotive manufacturers the precision and efficiency needed to produce high-quality welds in thin-gauge materials, ensuring structural integrity and durability.

2) Aerospace Industry: Aircraft Fuselage, Engine Components, and Structural Elements

In the aerospace industry, where weight reduction and performance are critical, sheet metal welding plays a crucial role in fabricating aircraft fuselage, engine components, and structural elements. Pulsed welding technology enables aerospace manufacturers to achieve precise control over weld parameters, resulting in lightweight yet strong and reliable assemblies.

3) Electronics Industry: Enclosures, Cabinets, and Heat Sinks

Electronic enclosures, cabinets, and heat sinks often require intricate sheet metal fabrication to provide thermal management and protection for sensitive electronic components. Pulsed welding technology offers electronics manufacturers the flexibility to weld dissimilar metals and thin materials with minimal distortion, ensuring optimal performance and reliability.

4) Construction Industry: Architectural Panels, HVAC Ductwork, and Metal Roofing

In the construction industry, sheet metal is used extensively for fabricating architectural panels, HVAC ductwork, and metal roofing systems. Pulsed welding technology allows construction contractors to achieve tight seams and clean welds, enhancing the aesthetic appeal and structural integrity of building components.

VII. Factors to Consider When Implementing Pulsed Welding for Sheet Metal

1) Material Compatibility and Thickness

When implementing pulsed welding technology for sheet metal fabrication, it's essential to consider the compatibility and thickness of the materials being welded. Different metals and alloys have varying welding characteristics, requiring adjustments to welding parameters and techniques.

2) Equipment Selection: Pulsed MIG, TIG, or Laser Welding Systems

Pulsed welding technology is available in various forms, including MIG, TIG, and laser welding systems. The choice of equipment depends on factors such as material type, thickness, and application requirements, as well as budget constraints and available resources.

3) Process Parameters: Pulse Frequency, Duration, Peak Current, and Background Current

Optimizing process parameters is critical for achieving optimal weld quality and productivity with pulsed welding technology. Parameters such as pulse frequency, duration, peak current, and background current must be carefully adjusted based on the specific welding application and material characteristics.

4) Shielding Gas Selection and Delivery Methods

Proper shielding gas selection and delivery methods are essential for protecting the weld zone from atmospheric contamination and oxidation. Factors such as gas composition, flow rate, and delivery system design can significantly impact weld quality and performance.

5) Training and Skill Development for Operators

Effective implementation of pulsed welding technology requires proper training and skill development for operators and welding technicians. Training programs should cover equipment setup, parameter selection, troubleshooting, and safety protocols to ensure safe and efficient operation of pulsed welding systems.

V. Conclusion

In conclusion, pulsed welding technology represents a powerful solution to the challenges of sheet metal welding, offering unparalleled control, precision, and efficiency. By harnessing the benefits of pulsed welding, manufacturers can overcome common issues such as heat distortion, burn-through, and contamination, while achieving superior weld quality and productivity. As industries continue to evolve and demand lighter, stronger, and more complex components, the role of pulsed welding in solving sheet metal problems will only become more critical. By staying abreast of the latest advancements and embracing innovation, manufacturers can unlock new possibilities and drive progress in the field of welding technology.
