In the idealized environment of a welding school or a controlled fabrication shop, workpieces are often placed conveniently on a bench directly in front of the welder. This is known as "flat position" welding—the easiest and most efficient way to join metal. However, the real world is rarely flat.
From repairing a cracked hull beneath a ship to joining structural beams 40 stories in the air, professional welders must frequently perform out-of-position welding. This advanced skill set is what separates a novice from a journeyman. Mastering it requires a deep understanding of physics, heat control, and the behavior of molten metal.
I. What's Out-of-Position Welding?
To understand out-of-position welding, we must first define the standard. According to the American Welding Society (AWS), there are four primary welding positions for plate:
1G (Flat): The most stable position. Gravity helps the molten metal flow into the joint.
2G (Horizontal): The weld is performed on a horizontal axis on a vertical surface.
3G (Vertical): The weld axis is vertical.
4G (Overhead): The most difficult position, where the welder works from the underside of a joint.
Out-of-position welding refers specifically to any welding performed in the Horizontal (2G), Vertical (3G), or Overhead (4G) positions. In these scenarios, gravity is no longer your ally; it is a constant force working to pull the molten weld pool out of the joint and onto the floor (or the welder).
II. The Physics of the Puddle: Managing Gravity
The primary challenge of out-of-position welding is puddle control. When you are welding flat, gravity helps the filler metal penetrate and settle. When you move out of position, gravity pulls the "liquid" metal downward, leading to defects like sagging, undercut, or incomplete fusion.
To combat this, welders must manipulate three critical variables:
1) Heat Input (Amperage):
Generally, out-of-position welding requires lower heat than flat welding. If the puddle becomes too hot, it becomes too fluid, making it nearly impossible to keep in the joint. Reducing your amperage by 10% to 15% is a common starting point when moving from flat to vertical or overhead positions.
2) Arc Length:
A tight arc is essential. In out-of-position welding, a long arc increases the voltage and heat, causing the puddle to widen and drip. By maintaining a short arc, you exert better "directional" control over where the metal is deposited.
3) Electrode Manipulation:
Welders often use specific "weave" patterns or "whipping" motions to allow the metal to freeze momentarily. This "freeze" provides a solid foundation for the next layer of molten metal.
III. Breaking Down the Positions

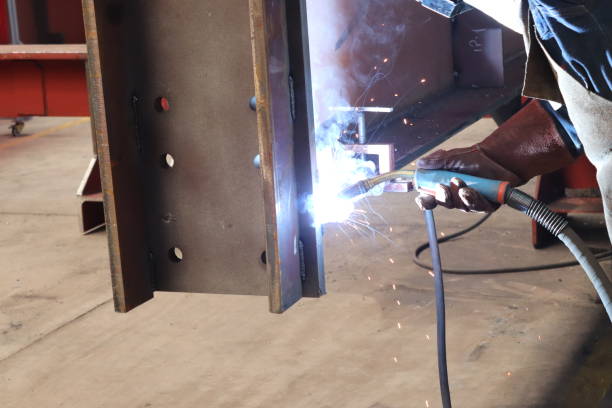

1) Vertical Welding (3G):
Vertical welding can be performed in two directions: Vertical-Up and Vertical-Down.
Vertical-Up: Used for thick, structural materials. It provides deep penetration because the welder is constantly "stacking" the molten metal on top of a solidified shelf. It requires a "triangular" or "zig-zag" weave pattern.
Vertical-Down: Used for thin gauge metals or pipe root passes. It is much faster but offers less penetration. The risk here is "slag inclusions," where the molten slag runs ahead of the weld pool and gets trapped.
2) Horizontal Welding (2G):
The main struggle in the horizontal position is the "shelf" effect. Gravity pulls the puddle toward the bottom piece of metal, often leaving an "undercut" (a groove) on the top piece. To fix this, welders point the electrode slightly upward toward the top piece to "push" the metal into the upper corner.
3) Overhead Welding (4G):
Overhead is often considered the "final boss" of welding. Not only is the puddle trying to fall out, but the welder is also dealing with falling sparks and hot dross. The key to overhead success is a very fast travel speed and a very short arc. You want to "freeze" the metal into the joint before gravity can react.
IV. Welding Consumables and Equipment Selection
Not all electrodes or wires are created equal. Some are designed specifically for out-of-position work.
1) Stick Welding (SMAW) Electrodes:
E6010 / E6011: These are "fast-freeze" electrodes. The puddle solidifies almost instantly, making them the gold standard for out-of-position pipe welding and root passes.
E7018: A "low-hydrogen" electrode. While it is more fluid than 6010, its high strength makes it necessary for out-of-position structural work. It requires a very steady hand and a "shelf-building" technique.
2) Flux-Cored Arc Welding (FCAW):
For out-of-position production work, all-position flux-cored wire (like E71T-1) is used. These wires contain a fast-freezing slag that acts like a "mold" or "support" to hold the molten metal in place as it cools.
V. Welding Safety: The Hidden Danger of Out-of-Position Work
Safety risks increase exponentially when welding out of position.
Falling Molten Metal: In overhead and vertical welding, "spatter" becomes "rain." Welders must wear full leather jackets, capes, and specialized "welder’s caps" beneath their helmets to prevent burns to the neck and ears.
Fume Inhalation: When welding overhead, your head is often directly in the path of the rising smoke and fumes. Proper ventilation or a PAPR (Powered Air Purifying Respirator) is highly recommended.
Ergonomics and Fatigue: Staying in an awkward position for long periods causes muscle fatigue. A fatigued welder is an unsteady welder. Utilizing "stiff-arms" or leaning against a support can help maintain stability.
VI. How to Practice Out-of-Position Welding
If you want to master these techniques, follow this progression:
Master the Flat Position first. You must know what a "perfect" puddle looks like before you try to fight gravity.
Start with Vertical-Down. It is the easiest out-of-position move for beginners to understand travel speed.
Move to Horizontal. Learn how to adjust your rod angle to prevent undercut.
Graduation to Vertical-Up and Overhead. These require the most patience. Focus on building a "shelf" of metal and watching the edges of the weld to ensure they are fusing into the base material.
Conclusion
Mastering out-of-position welding is a journey of muscle memory and technical knowledge. It is a skill that demands respect for the laws of physics and a relentless focus on safety. By understanding the three-phase management of heat, arc length, and electrode angle, you can produce code-quality welds regardless of the orientation of the joint.
In the fabrication industry, those who can weld where others cannot are the ones who get the most challenging—and highest-paying—jobs. Whether you are working on structural steel, industrial piping, or heavy equipment repair, your ability to handle out-of-position challenges will define your professional reputation.
