How to Choose the Right Stick Electrode (SMAW)?

In the world of Shielded Metal Arc Welding (SMAW), commonly known as stick welding, the electrode is your most critical tool. It is more than just a piece of filler metal; it is a complex combination of chemistry and physics designed to provide the arc, the shielding gas, and the final mechanical properties of the weld.

Choosing the wrong electrode can lead to weld failure, excessive spatter, or difficult slag removal. Whether you are working on a heavy-duty structural project or a simple repair in a home garage, understanding how to select the right consumable is the difference between a professional-grade joint and a costly mistake.

I. Decoding the AWS Classification System

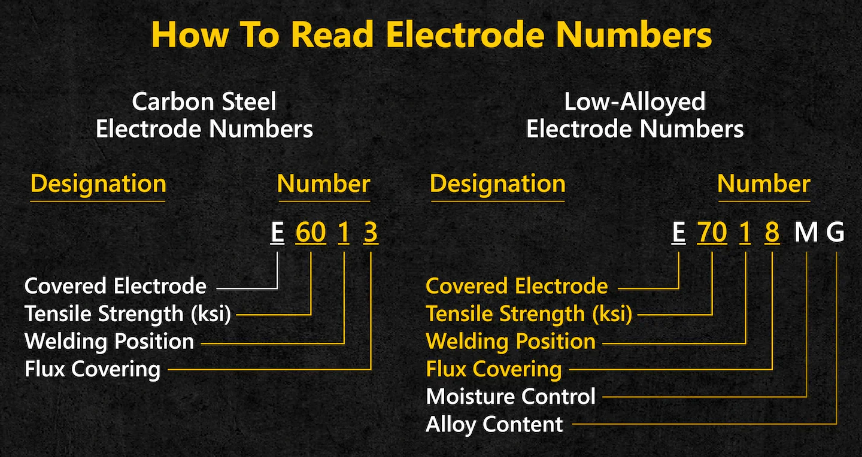

Before you can choose an electrode, you must understand the "language" printed on the side of every rod. The American Welding Society (AWS) uses a standardized numbering system—typically five characters starting with "E"—to define the electrode's capabilities.

1) The Prefix: E

• The "E" simply stands for electrode, indicating that the rod is an electrical conductor and a filler metal.

2) The First Two Digits: Tensile Strength

The first two digits (e.g., 60 or 70) indicate the minimum tensile strength of the weld metal, measured in thousands of pounds per square inch (psi).

• 60: 60,000 psi

• 70: 70,000 psi

This strength must always match or slightly exceed the strength of the base metal you are welding.

3) The Third Digit: Welding Position

This digit tells you which physical positions the electrode can be used in:

• 1: All positions (Flat, Horizontal, Vertical, Overhead).

• 2: Flat and Horizontal fillets only.

• 4: Flat, Horizontal, Overhead, and Vertical down.

4) The Fourth Digit: Coating and Current

• The final digit (0 through 8) provides technical details regarding the flux coating and the type of welding current (AC, DCEP, or DCEN) the rod requires. This digit also indicates the penetration characteristics (Deep, Medium, or Light).

II. 5 Critical Factors for Selecting the Right Electrode

To narrow down your choices, evaluate your project against these five industry-standard criteria.

1. Base Metal Properties

The "golden rule" of welding is to match the electrode to the base metal.

• Composition: Is it mild steel, low-alloy steel, or cast iron?

• Visual Identification: If you aren't sure, look at the metal's appearance. If it’s rusty or oily, you need an electrode with high "digging" action. If it's thin and clean, you need a rod with low penetration to avoid "burn-through."

2. Tensile Strength

As mentioned in the AWS code, you must match the tensile strength of the rod to the base metal. For example, if you are welding A36 steel (which has a tensile strength of approximately 58,000 to 80,000 psi), an E6010 or E7018 rod is appropriate. Using an electrode with lower strength than the base metal creates a structural weak point.

3) Welding Current

Not all welding machines are created equal. Some smaller, entry-level "buzz boxes" only produce Alternating Current (AC).

• AC-Only Machines: You must choose electrodes designed for AC, such as E6011 or E6013.

• DC Machines: Direct Current (DC) machines provide a much smoother arc and easier starts. Most professional electrodes perform best on DCEP (Direct Current Electrode Positive).

4. Joint Design and Fit-Up

The way the metal pieces meet dictates the type of arc you need.

• Tight Fit-Up / Beveled Edges: If the pieces are tight together, use a deep-penetrating rod like E6010 to ensure the weld reaches the root.

• Wide Gaps: If there is a gap between the pieces (poor fit-up), use a "fast-freeze" rod or one with lower penetration, like E6013, to bridge the gap without the molten metal falling through.

5. Service Conditions and Environment

Consider the environment the finished weld will inhabit.

• Low Temperatures: Projects exposed to extreme cold or high pressure (like pressure vessels) require "low-hydrogen" electrodes (ending in 18, like E7018) to prevent hydrogen-induced cracking.

• Dirty/Rusty Metal: If you cannot grind the metal down to a shiny finish, an E6010 or E6011 is necessary because their cellulose-based coating "blasts" through contaminants.

III. Common Stick Electrodes and When to Use Them

While there are dozens of specialized rods, four "workhorse" electrodes handle roughly 90% of all stick welding tasks.

1. E6010: The "Pipeliner’s Rod"

This is a high-cellulose, deep-penetrating electrode. It is primarily used for the root pass on pipes and for welding through rust and paint.

• Pros: Deep penetration, "fast-freeze" (puddle solidifies quickly), excellent for vertical welding.

• Cons: Harsh arc, high spatter, requires a DC-only power source.

2. E6011: The AC Version of 6010

E6011 offers the same deep penetration and fast-freeze characteristics as E6010 but is formulated to run on AC current. This makes it the go-to rod for farmers and maintenance workers using older AC machines for heavy repairs.

3. E6013: The "Beginner’s Best Friend"

Often called the "sheet metal rod," E6013 has a high-titania potassium coating that produces a very stable, soft arc.

• Pros: Easy to strike, very little spatter, beautiful weld bead appearance, slag peels off easily.

• Cons: Shallow penetration; not suitable for heavy structural loads or dirty metal.

4. E7018: The "Low-Hydrogen" Standard

The E7018 is the industry standard for structural steel and construction. It features an iron-powder, low-hydrogen flux.

• Pros: Extremely strong, crack-resistant, very smooth arc, produces high-quality "x-ray" grade welds.

• Cons: Highly sensitive to moisture. These rods must be kept in a rod oven to keep the flux dry, as moisture can lead to porosity and cracking.

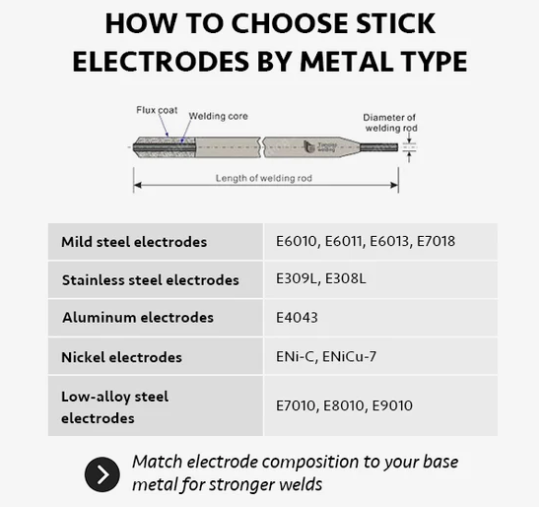

IV. Practical Comparison Table: At-A-Glance Selection

V. Welding Positions and Techniques

The physical orientation of your weld is a major factor in electrode choice.

1. Flat (1G/1F): The easiest position. You can use almost any rod here, but an E7024 (Iron Powder) is often used for high-speed, high-deposition welding.

2. Horizontal (2G/2F): Gravity will pull the puddle down. A rod with medium-freeze characteristics like E7018 works well.

3. Vertical (3G/3F) and Overhead (4G/4F): You need a "fast-freeze" rod. The puddle must solidify before it has a chance to drip or sag. E6010 and E7018 are the favorites for vertical-up welding.

VI.  Proper Storage: Protecting Your Investment

An electrode is only as good as its flux. If the flux is damaged or damp, the electrode is useless.

• Cellulosic Rods (E6010/E6011): These actually require a small amount of moisture (about 3-7%) to work correctly. Do not store them in an oven. Keep them in a cool, dry place in their original container.

• Low-Hydrogen Rods (E7018): These are like sponges for moisture. Once the seal is broken on a can of E7018, the rods should ideally be placed in a rod oven at 250°F to 300°F (120°C to 150°C). If they are left out for more than 4 hours, they may need to be "re-baked" at higher temperatures to remain code-compliant.

Conclusion

Choosing the right stick electrode is a balance of science and practical experience. Start by identifying your base metal and your machine's power output, then match the tensile strength and welding position.

If you're a hobbyist, keep a box of E6013 for general fabrication and E6011 for repairs on rusty equipment. If you are aiming for professional or structural work, mastering the E7018 is non-negotiable. By matching the rod to the job, you ensure that every arc you strike leads to a weld that is strong, clean, and built to last.
