GMAW Transfer Modes: Guide to Optimize Efficiency and Weld Quality

In the realm of Gas Metal Arc Welding (GMAW), commonly known as MIG welding, success is determined by more than just steady hands and the right shielding gas. One of the most critical, yet often misunderstood, technical aspects of the process is the method by which the molten metal travels from the welding wire to the workpiece. This phenomenon is known as the "metal transfer mode."

Selecting the correct GMAW transfer modes is the difference between a high-strength, aesthetic weld and one plagued by spatter, lack of fusion, or excessive distortion. This guide provides an in-depth exploration of the four primary welding transfer modes, their technical requirements, and how to choose the right one for your specific fabrication project.

What are GMAW Transfer Modes?

At its simplest, a transfer mode describes the physics of how the electrode wire melts and "transfers" across the arc into the weld pool. These modes are not random; they are governed by the relationship between welding current (amperage), voltage, wire diameter, and the composition of the shielding gas.

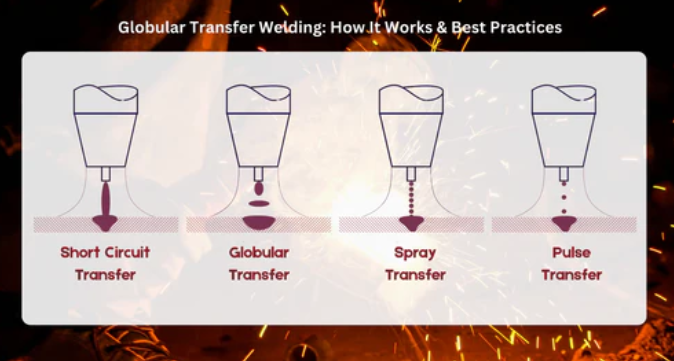

The industry recognizes four distinct modes of metal transfer:

• Short-Circuit Transfer

• Globular Transfer

• Spray Transfer

• Pulsed-Spray Transfer

Each mode has a specific "operating envelope." Understanding these envelopes allows welders to manipulate heat input, deposition rates, and penetration profiles to suit different metal thicknesses and positions.

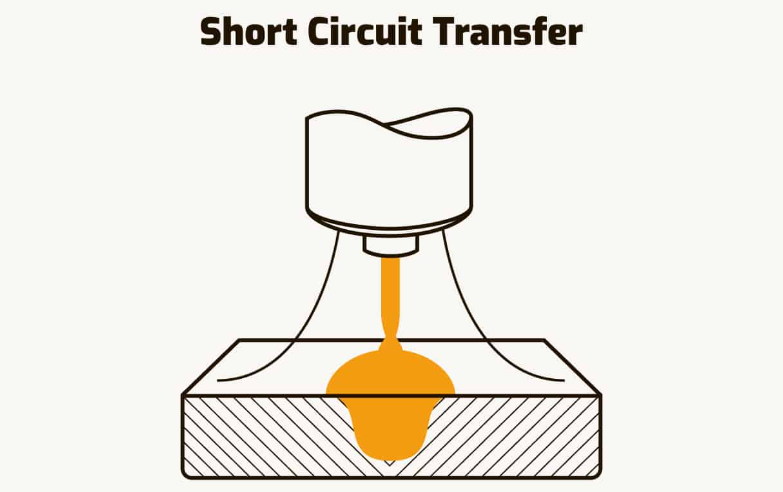

1. Short-Circuit Transfer (GMAW-S)

Short-circuit transfer, often called "Short Arc," is perhaps the most widely used mode, especially in small shops and for thin-gauge materials.

1) How it Works?

• In this mode, the wire electrode actually touches the weld pool, creating a physical "short circuit." When this happens, the current spikes, causing the tip of the wire to melt off into the puddle. The arc then re-establishes itself briefly before the wire touches the puddle again. This cycle repeats between 20 and 200 times per second.

2) Key Characteristics

• Low Heat Input: Because the arc is not continuous, the total heat transferred to the base metal is minimal.

• All-Position Capability: The small, fast-freezing puddle makes it easy to weld vertically or overhead without the metal sagging.

• Thin Metal Specialist: Ideal for materials less than 1/8 inch thick.

3) Limitations

• Lack of Fusion: On thicker materials (1/4 inch or more), short-circuiting often lacks the energy to penetrate deeply, leading to "cold lap" or lack of sidewall fusion.

• Spatter: If the voltage and wire feed speed are not perfectly balanced, this mode can produce significant spatter.

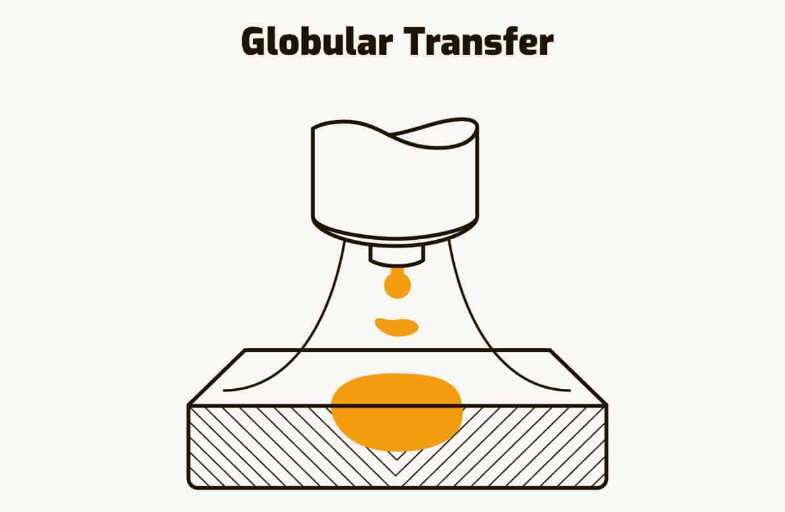

2. Globular Transfer

Globular transfer is often considered the "unintentional" middle ground between short-circuit and spray transfer. It occurs when the voltage and amperage are higher than short-circuit levels but lower than the threshold required for a true spray.

1) How it Works

• In this mode, a large ball of molten metal (larger than the diameter of the wire) forms at the tip of the electrode. Gravity eventually pulls this "globule" into the weld pool. Unlike short-circuiting, the droplet generally does not touch the pool before it detaches.

2) Key Characteristics

• High Deposition Rates: It can melt a lot of wire quickly.

• Inexpensive Shielding Gas: This mode is typically achieved using 100% CO₂ shielding gas, which is the most affordable option.

3) Limitations

• Excessive Spatter: The droplets transfer erratically, often splashing into the puddle and creating heavy spatter that requires extensive post-weld cleaning.

• Flat/Horizontal Only: The large, fluid globule is difficult to control in vertical or overhead positions.

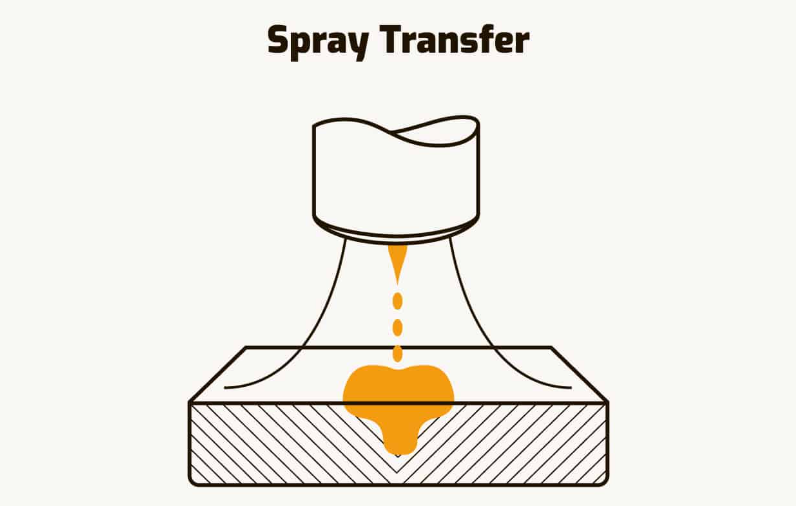

3. Spray Transfer

Spray transfer is the "high-performance" mode of GMAW, utilized in heavy industrial fabrication where speed and deep penetration are paramount.

1) How it Works

• When the voltage and current exceed a specific "transition current," the metal no longer forms large balls. Instead, it is projected across the arc in a stream of tiny, mist-like droplets. This requires a shielding gas mixture containing at least 80% Argon.

2) Key Characteristics

• Deep Penetration: The high energy of the arc ensures excellent fusion, even on thick plates.

• Virtually No Spatter: When dialed in, spray transfer produces a smooth "hissing" sound and a clean, aesthetic bead.

• High Productivity: Ideal for long, continuous welds on heavy structural steel.

3) Limitations

• High Heat Input: Not suitable for thin materials as it will easily cause burn-through.

• Position Restricted: Because the weld pool is so large and fluid, spray transfer is generally limited to the flat and horizontal-fillet positions.

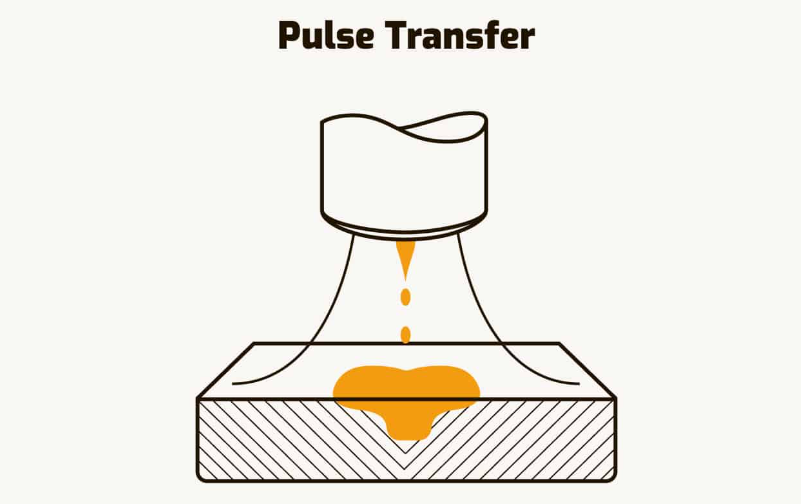

4. Pulsed-Spray Transfer (GMAW-P)

Pulsed-spray transfer is a highly sophisticated mode that requires an inverter-based power source. It aims to provide the benefits of spray transfer with the heat control of short-circuiting.

1) How it Works

• The machine rapidly switches between a high "peak" current (which clears a single droplet of metal) and a low "background" current (which maintains the arc but allows the puddle to cool).

2) Key Characteristics

• The Best of Both Worlds: You get the deep penetration and spatter-free finish of spray transfer, but the lower average heat allows you to weld in all positions—including vertical up and overhead.

• Reduced Distortion: Lower heat input means less warping on long parts.

• Weldability of Thin Stainless and Aluminum: It is the preferred mode for high-quality work on sensitive alloys.

Comparing Welding Transfer Modes

Factors Influencing Metal Transfer

Selecting from these GMAW transfer modes isn't just about flipping a switch; it requires balancing several variables:

1. Shielding Gas Composition

Gas is the gatekeeper of the transfer mode. To achieve spray or pulsed-spray, you must have an Argon-rich mixture (typically 80% to 95% Argon). Using 100% CO₂ will always result in globular or short-circuit transfer regardless of your settings.

2. Transition Current

Every wire diameter has a "transition current." This is the specific amperage where the transfer moves from globular to spray. For example, a 0.035-inch steel wire typically transitions to spray at around 150-165 amps.

3. Voltage and Wire Feed Speed (WFS)

Voltage acts as the "pressure" that defines the arc length, while WFS controls the amperage. If the voltage is too low for the WFS, you will stay in short-circuit mode. If you increase the voltage while using Argon-rich gas, you will push into spray.

Health and Safety: Fume Emissions

Recent studies, including those by the Megmeet, have shown that welding transfer modes significantly affect the volume of fumes produced.

• Globular transfer typically produces the highest level of fumes due to the erratic nature of the droplets and arc instability.

• Spray and Pulsed-Spray tend to produce lower particulate emissions because the arc is more stable, though they may produce more ozone due to higher UV intensity.

Regardless of the mode, always use local exhaust ventilation (LEV) to protect your respiratory health.

Conclusion

Mastering GMAW transfer modes is a hallmark of a professional fabricator. By understanding the physics of the arc, you can transition from the cool, manageable short-circuit mode for thin sheet metal to the high-speed, deep-penetrating spray mode for heavy structural work.

Whether you are seeking the aesthetic "stack of dimes" via pulsed-spray or the raw efficiency of spray transfer, the key lies in the harmony between your gas, your wire, and your machine settings.
