Welding is a process that requires various gases to achieve a smooth and strong weld. Welding gases help to shield the weld from harmful substances and affect the appearance and properties of the weld. In this article, Megmeet will explore the different types of gases used in welding, their properties, and their specific uses in various welding processes.
I. What are Welding Gases?
Welding gases are essential for various welding processes, as they can protect the weld from contamination, influence the arc stability, and modify the weld properties. There are two main categories of welding gases: inert and reactive. Inert gases do not react with the weld pool or the surrounding air, while reactive gases can alter the chemical composition or the temperature of the weld. Some common examples of inert gases are helium and argon, and some common examples of reactive gases are oxygen, carbon dioxide, and hydrogen.
II. Key Uses of Gases in Welding.
Depending on the type of welding process, different gases or gas mixtures can be used for different purposes. Some of the main uses of welding gases are:
Shielding: This is the most common use, especially for MIG and TIG welding. Shielding gases create a protective layer around the arc and the weld pool, preventing oxidation, porosity, and spatter. Shielding gases can also affect the penetration, fluidity, and appearance of the weld bead. Usually, inert gases or inert gas mixtures are used for shielding.
Purging: This is used to remove air or other contaminants from the backside of the weld, where the shielding gas cannot reach. Purging is often used for welding pipes, tubes, or vessels that need to be sealed from both sides. Purging gases are usually inert, such as argon or nitrogen.
Blanketing: This is used to cover the finished weld and prevent it from reacting with the air as it cools down. Blanketing gases can also reduce the risk of corrosion or oxidation on the weld surface. Blanketing gases are usually inert or slightly reactive, such as argon or argon with carbon dioxide.
Heating: This is used to increase the temperature of the metal before, during, or after welding. Heating can improve the weldability, reduce distortion, or relieve stress on the metal. Heating gases are usually reactive, such as oxygen, acetylene, or propane.
III. Types of Welding Gases.
1. Oxygen (O2)
1) Properties of Oxygen:
Oxygen (O2) is one of the most commonly used welding gases. It is a colorless, odorless, and tasteless gas that makes up about 21% of the Earth's atmosphere. In welding, oxygen is used in its pure form. Some key properties of oxygen include:
Highly reactive: Oxygen readily supports combustion and helps in the oxidation of materials.
Supports higher temperatures: Oxygen allows for the welding of metals at higher temperatures, making it suitable for various applications.
Versatile: It can be used with a variety of metals, including steel, aluminum, and copper.
2) Uses in Welding:
Oxygen has several important applications in welding:
Oxygen-Acetylene Welding: It is commonly used in combination with acetylene for oxy-acetylene welding and cutting processes. The mixture of oxygen and acetylene produces an extremely hot flame, ideal for cutting and welding metals.
Oxygen-Lance Cutting: Oxygen can be used as a cutting gas on its own, allowing for precise and controlled cutting of metals. This process is known as oxygen-lance cutting.
Oxygen Welding: In some cases, oxygen is used in the welding process itself, either for additional heat input or to enhance the combustion of a flux coating on welding electrodes.
2. Acetylene (C2H2)
1) Properties of Acetylene
Acetylene (C2H2) is a highly flammable gas that is colorless, but it has a distinct, sweetish odor. It is lighter than air and is typically stored and transported in specialized cylinders filled with a porous material saturated with acetone. Some key properties of acetylene include:
High flame temperature: Acetylene burns at a very high temperature, making it suitable for various welding and cutting applications.
Versatile: It can be used for welding, cutting, brazing, and heating operations.
Reactive: Acetylene is highly reactive and can ignite spontaneously when in contact with certain materials.
2) Uses in Welding
Acetylene is widely used in welding for the following purposes:
Oxy-Acetylene Welding: The oxy-acetylene welding process uses a mixture of oxygen and acetylene to produce a high-temperature flame for welding and cutting metals. This process is known for its versatility and precision.
Brazing: Acetylene can be used for brazing, a process that joins metals by melting a filler material (usually a brass or bronze alloy) without melting the base metals.
Flame Heating: Acetylene can be used for flame-heating applications, such as preheating metal before welding or bending operations.
3. Argon (Ar)
1) Properties of Argon:
Argon (Ar) is an inert, colorless, and odorless gas that makes up a small fraction of the Earth's atmosphere. It is chemically non-reactive, which makes it suitable for specific welding applications. Some key properties of argon include:
Inert: Argon does not react with most materials, making it ideal for shielding reactive metals from atmospheric contamination during welding.
Thermal conductivity: It has excellent thermal conductivity, which helps dissipate heat during welding.
Non-flammable: Argon is non-flammable and does not support combustion.
2) Uses in Welding
Argon is primarily used in welding as a shielding gas, particularly in the following applications:
Tungsten Inert Gas (TIG) Welding: Argon is commonly used as the shielding gas in TIG welding, also known as gas tungsten arc welding (GTAW). In TIG welding, a non-consumable tungsten electrode generates the arc, and argon is used to shield the weld area from atmospheric gases, ensuring a clean and strong weld.
Metal Inert Gas (MIG) Welding: While carbon dioxide or a mixture of gases is often used in MIG welding, argon can be used in combination with other gases to improve the quality of the weld, particularly when welding non-ferrous metals like aluminum.
Aluminum Welding: Argon is the preferred shielding gas for welding aluminum because it prevents the formation of oxide layers on the metal's surface, ensuring a strong and clean weld.
4. Carbon Dioxide (CO2)
1) Properties of Carbon Dioxide:
Carbon dioxide (CO2) is a colorless and odorless gas that exists in the Earth's atmosphere at a relatively low concentration. It is chemically stable and non-flammable. Some key properties of carbon dioxide include:
Inert: While carbon dioxide is generally inert, it can act as a reactive gas in certain welding processes, such as gas metal arc welding (GMAW).
High thermal conductivity: It has good thermal conductivity, which can affect the welding process.
2) Uses in Welding
Carbon dioxide is primarily used in welding as a shielding gas in the following applications:
Gas Metal Arc Welding (GMAW): Also known as MIG welding, this process often uses a mixture of argon and carbon dioxide (CO2) as the shielding gas. The CO2 helps stabilize the arc and provides better penetration when welding steel.
Flux-Cored Arc Welding (FCAW): In FCAW, a flux core within the welding wire provides protection from atmospheric contamination, but CO2 can be added to enhance the shielding effect when welding steel.
Carbon Dioxide Welding: While less common today, pure carbon dioxide can be used for welding, particularly when welding thicker sections of steel.
5. Helium (He)
1) Properties of Helium
Helium (He) is a colorless, odorless, and non-flammable gas that is lighter than air. It is chemically inert and does not react with metals or other materials. Some key properties of helium include:
Low thermal conductivity: Helium has very low thermal conductivity, which means it can create a narrower and deeper weld bead compared to other shielding gases.
High arc voltage: Helium requires a higher arc voltage to maintain the welding arc.
2) Uses in Welding
Helium is used in welding for specific applications where its properties are advantageous:
Gas Tungsten Arc Welding (GTAW): Helium is sometimes used as an alternative or in combination with argon as the shielding gas in TIG welding. It is especially useful when welding non-ferrous metals like aluminum and magnesium, as it provides a hotter and more concentrated arc.
Higher-Penetration Welds: Helium is preferred when deep penetration welds are required, such as in the aerospace industry for welding aluminum and titanium alloys.
6. Hydrogen (H2)
1) Properties of Hydrogen
Hydrogen (H2) is a colorless, odorless, and highly flammable gas. It is the lightest of all elements and is chemically reactive. Some key properties of hydrogen include:
High flame temperature: Hydrogen burns at an extremely high temperature, making it suitable for certain welding and cutting applications.
Reducing atmosphere: Hydrogen is a reducing gas, which means it can remove oxides and impurities from the weld area.
Flammable: Hydrogen is highly flammable and requires careful handling and storage.
2) Uses in Welding
Hydrogen is used in welding for specific applications where its properties are advantageous:
Atomic Hydrogen Welding (AHW): This specialized welding process uses hydrogen gas to generate an extremely high-temperature flame. It is used for joining metals and is known for its ability to produce high-quality, deep-penetration welds.
Hydrogen Atmosphere Welding: Hydrogen is sometimes used in controlled atmospheres for welding and heat treating certain metals to reduce surface oxides and improve weld quality.
7. Mixtures of Welding Gases
In addition to the pure gases discussed above, welding often involves the use of gas mixtures. These mixtures are tailored to specific welding processes and materials to achieve the desired results. Some common mixtures include:
Oxygen and acetylene: This is the classic gas mixture for gas welding (or oxy-acetylene welding), which uses a flame to melt and join metals. Oxygen and acetylene produce a very hot flame (up to 3500°C), which can cut through thick metals or weld almost any metal. However, this process is also very noisy, smoky, and expensive compared to other methods.
Argon and carbon dioxide (Ar-CO2): This is a common gas mixture for MIG welding (or gas metal arc welding), which uses a consumable wire electrode to create an arc and melt metals. Argon and carbon dioxide provide a good balance between arc stability, penetration, and spatter control. The percentage of carbon dioxide can vary depending on the type of metal and the desired weld characteristics.
Argon and helium (Ar-He): This is another common gas mixture for TIG welding (or gas tungsten arc welding), which uses a non-consumable tungsten electrode to create an arc and melt metals. Argon and helium can increase the heat input and improve the arc performance on thick or high-conductivity metals, such as aluminum or copper. However, this mixture can also increase the cost and reduce the arc stability compared to pure argon.
Oxygen-Hydrogen (O2-H2): This mixture is used in atomic hydrogen welding (AHW) and can produce extremely high-temperature flames for deep-penetration welding.
Argon-Hydrogen (Ar-H2): This mixture is sometimes used for stainless steel welding, as it can improve the weld's cleanliness and reduce the risk of hydrogen-induced cracking.
Argon-Helium-Carbon Dioxide (Ar-He-CO2): This mixture is used for welding thick sections of carbon steel, as it combines the benefits of argon and helium for improved penetration and arc stability.
IV. Ensure Safety in Welding.
Welding gases, while essential for the welding process, can be hazardous if not handled and stored properly. Safety precautions must be taken to minimize risks associated with welding gases, including:

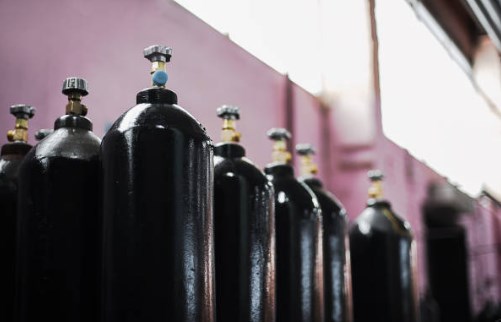

Proper Storage: Gases should be stored in well-ventilated areas away from direct sunlight, heat sources, and flammable materials. Secure gas cylinders in an upright position to prevent them from falling.
Handling: Always use the appropriate equipment, such as regulators and hoses, designed for specific gases. Ensure that connections are tight and leak-free.
Ventilation: Adequate ventilation is crucial to prevent the buildup of gases in confined spaces, which can be dangerous or even deadly.
Protective Gear: Welders should wear appropriate personal protective equipment, including welding helmets, gloves, and flame-resistant clothing, to protect against arc radiation and sparks.
Fire Safety: Since many welding gases are flammable, it is essential to have fire extinguishers and fire blankets readily available in the welding area.
Training: Ensure that welders are properly trained in the safe handling of welding gases and the use of equipment.
Relevant Article: Welding Safety Tips for a Secure Work Environment
V. Conclusion.
Welding gases are a critical component of the welding process, and their proper selection and use are essential to achieving high-quality welds. Understanding the properties and applications of different welding gases can help welders and professionals in various industries make informed decisions about which gases to use for specific welding projects.
Whether you are engaged in welding as a profession or a hobby, the knowledge of welding gases and their uses can enhance your welding skills and contribute to the success of your projects. By choosing the right welding gas or gas mixture and following safety guidelines, you can ensure the integrity and longevity of your welds while maintaining a safe work environment.
As technology continues to advance, new welding gases and techniques may emerge, further expanding the possibilities and capabilities of welding processes. Staying informed and adaptable in the ever-evolving field of welding is key to achieving excellence in this essential industrial art. You can pay attention to Megmeet Welding Technology News or Weld Guru to grasp the latest welding industry tendencies.
