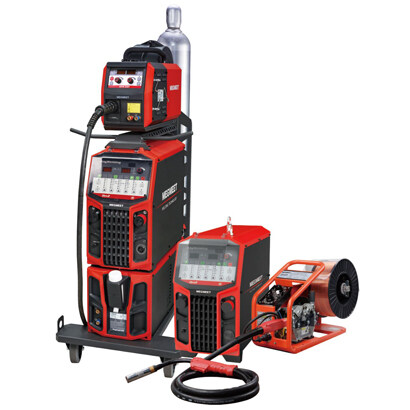

Full Digital IGBT Inverter Multi-functional MIG Welding Machine
Optimal welding programs in LSA (low-spatter-arc welding realized by software algorithm), quick pulse, high-speed weld and others. Be weldable in multiple materials: carbon steel, stainless steel, aluminum alloy, and others;
"Chopper" control technology is applied in software to precisely control droplets, and reduce spatter by more than 50%;
Unique quick pulse process integrates advantages of pulse and DC short circuit, and welding speed is increased by more than 20% compared with conventional pulse welding;
Wider voltage range, high current and low voltage, lower heat input, higher fusion efficiency, thin plate welding is comparable to TAP-TYPE machine;
Adaptive arc-start retraction technology increases arc start success rate to almost 100%;
Inverter frequency up to 110KHz enables higher control precision and more stable arc;

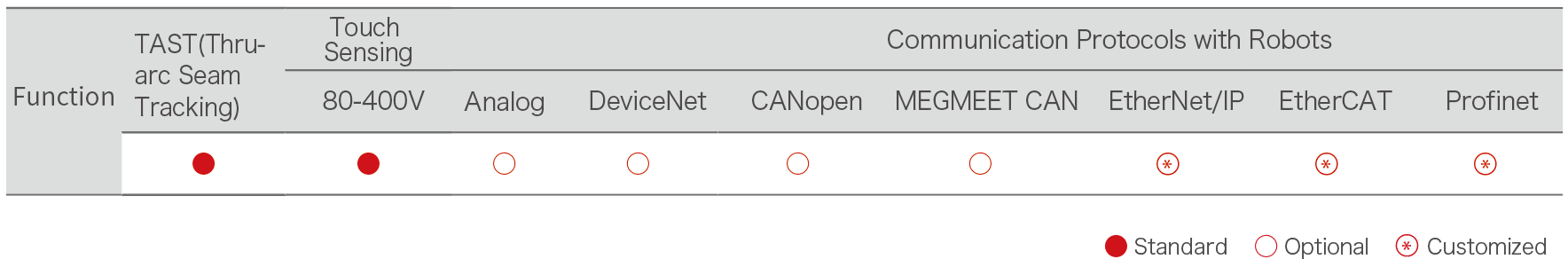

Comprehensive communication interfaces are able to communicate with different brands of robots;
Built-in touch sensing function with 80-400 voltage is easier to break down the rust on the surface of workpiece;
Acting national standard of first-level energy efficiency;
IOT interface is reserved to connect with Megmeet SMARC cloud system；
U-disk upgrade function ensures customers to easily obtain Megmeet's most cutting-edge welding technology；
Application industries: engineering machinery, steel structures, special vehicles, auto parts, two/tricycles, containers, petroleum and petrochemical industries, etc.
Application industries of Megwave S series Multifunctional MIG Welding Machines: engineering machinery, steel structures, special vehicles, auto parts, two/tricycles, containers, petroleum and petrochemical industries, etc.

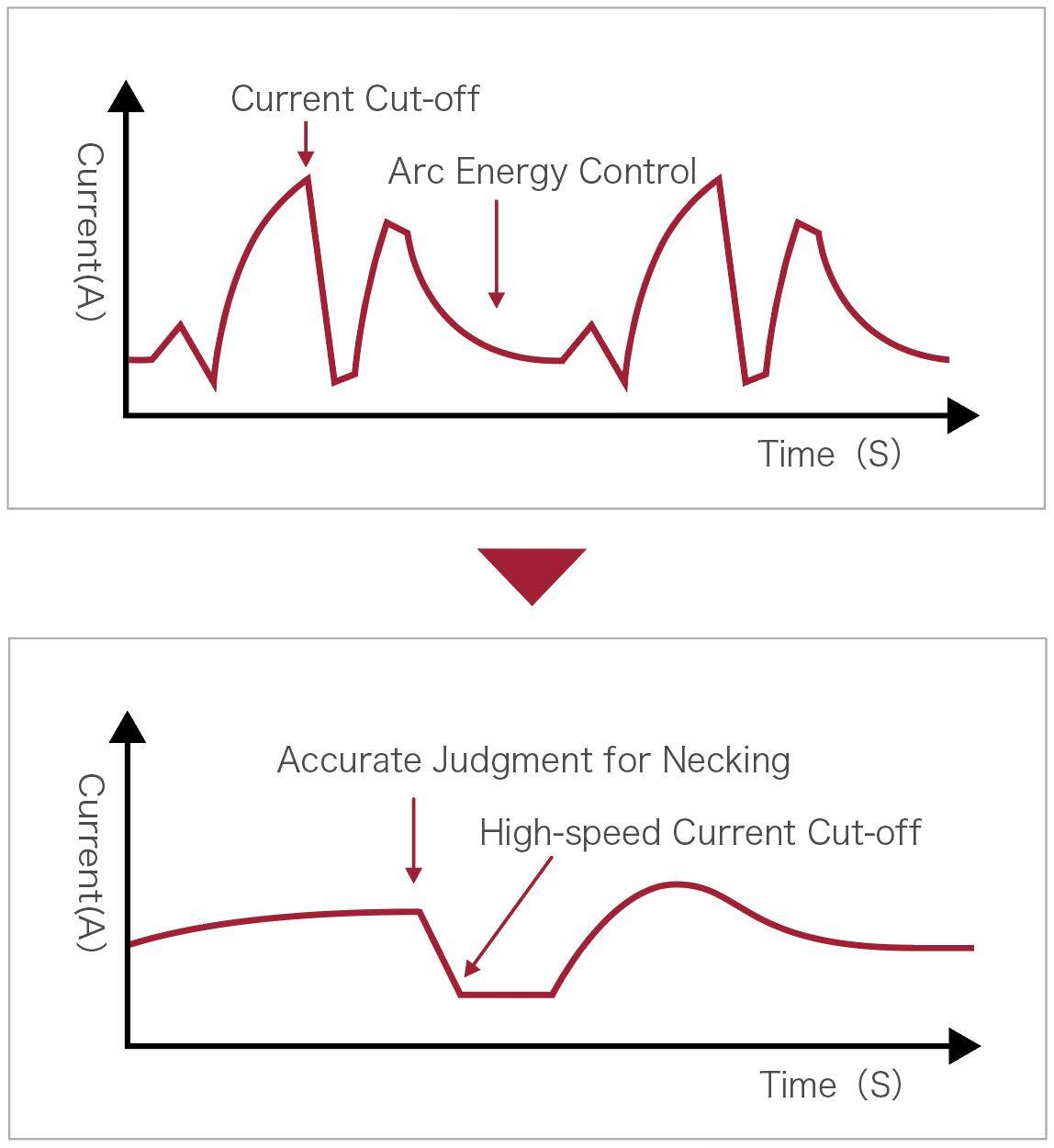

Fine management in droplet transfer through software algorithm so that short-circuit transfer of droplet is softly cut off, which greatly reduces spatter caused by liquid-bridge bursting and electromagnetic repulsion, and helps fusion pool more stable and weld shape more beautiful.

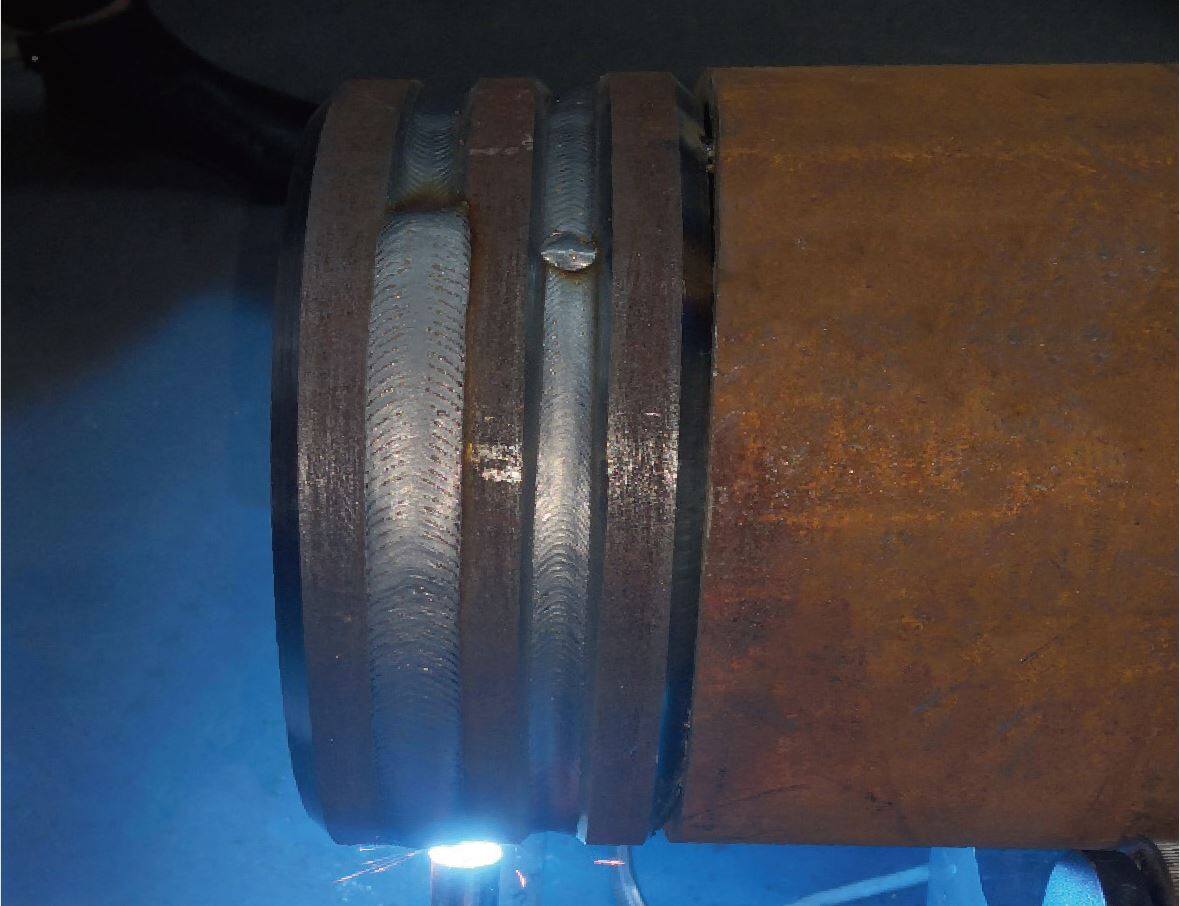

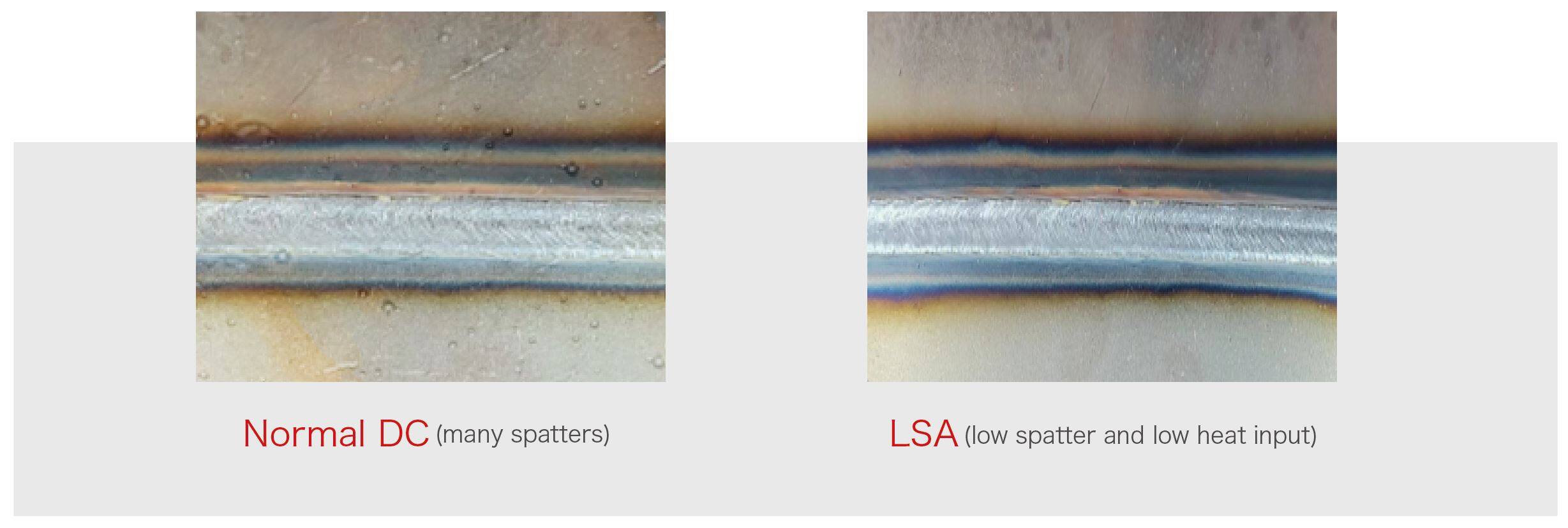

Compared with conventional DC welding, spatter quantity is cut down by 50%, which reduces cleaning and grinding time and improves production efficiency;
Fluctuation of fusion pool is small, weld surface is more delicate, and weld shape is more beautiful;
Lower heat input and less deformation;
Stronger gap adaptability.
Unique quick pulse welding technology adopts a three-level main power topology. High-speed sampling and control advantages, brought by the inverter frequency up to 110kHz, can reach a critical state between short circuit and pulse spray transition.
With shorter droplet transition distance, lower arc, and faster welding speed, pulse speed is increased by more than 20%. The service life of wearing parts is lengthened and the weld shape is better, meeting the actual needs of manual welding.
| Pain Points in Conventional Pulse Welding | VS | Megmeet Quick Pulse Technology(QPT) |
|
|
With a wider adaptive range of voltage, the same current is able to match lower voltage (10% lower than other welding machines);
Lower heat input, higher deposition efficiency, and thin-plate welding performance are comparable with tap-type machines.
When the welding machine detects an arc starting signal, the wire will retract at high speed, which greatly improves the quality and success rate of arc starting, and greatly reduces various arc staring issues.
Up-down torch is optional to conveniently adjust welding parameters on the torch(current, voltage, etc).
Strong environmental adaptability, suitable for working under tough environments;
Stable and reliable: stability is the base of intelligent welding machines!
Consistency: consistent performance by any machine, anytime and anywhere!
Built-in high-voltage touch sensing function with adjustable range 80~400V, no need to separately buy high-voltage touch sense device;
High reliability and effective penetration of oil stains, rust, water stains, etc., fast touch-sense with high precision, and strong adaptability to robots;
Current-limiting design ensures welding within a safe current range, effectively protecting the safety of welders and welding machines;
To ensure customers conveniently obtain Megmeet's foremost welding programs and function customization;
New software can be programmed into welding machines through a U disk.

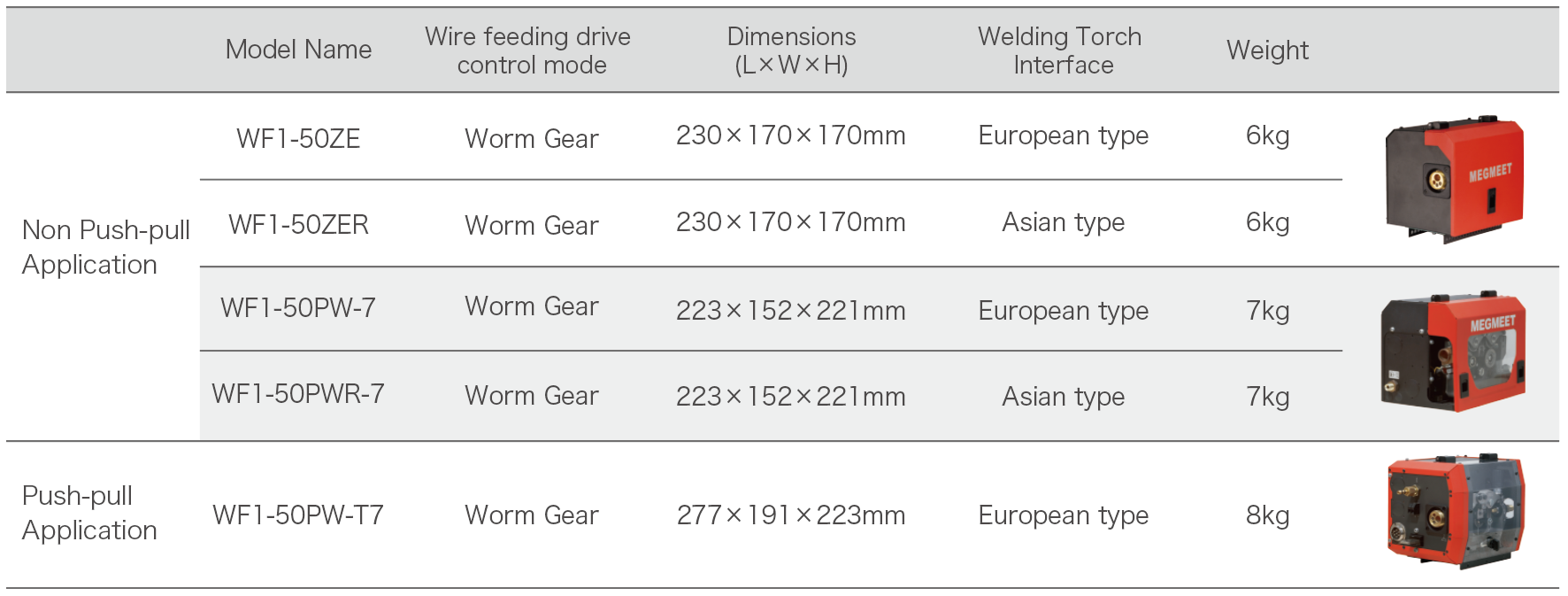

With an additional robotic accessories package, the manual-type welding power source can be expanded to a robotic welding power source to help users save money.
| Circulating Water Cooler AnyCool-66 | |
| Water cooler power supply | Powered by welding machine |
| Rated power | 370W |
| Rated voltage | 380V AC |
| Cooling water capacity | 6.8L |
| Cooling water flow | 3.5L/min |
| Cooling water maximum lift | 20m |
| Flow alarm | √ |
