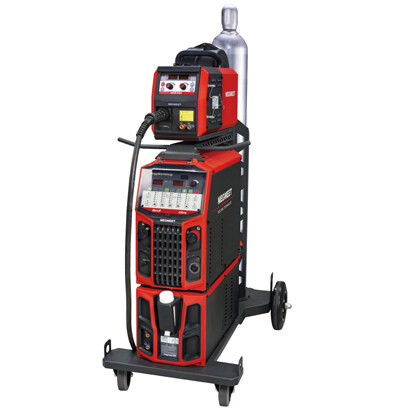

Megwave AC MIG Welding Machine (Dex2 Ultra CE)

Variable Polarity Full Digital IGBT Inverter AC-MIG Welding Machine

Superior welding programs in AC-Pulse MIG, AC short-circuit transition, quick pulse, and others, to easily realize high-performance welding of carbon steel, stainless steel, aluminum alloy, and other materials;

Wire feeding speed is faster and the deposition rate is increased by more than 20%, under the same current;

Patented software algorithm enables high-frequency switching of polarity, low heat input, less spatter, and 0.5mm aluminum alloy welding;

By adjusting the positive and negative polarity ratio of EN/EP, heat input is optimized, and optimal welding of the large-gap bridge can be easily achieved;

Arc energy is controllable and effectively suppresses the generation of welding fumes. The Glossiness of Al-Mg welding is as good as Al-Si welding with a more beautiful weld shape;

Inverter frequency up to 110KHz enables higher control precision and more stable arc;

Comprehensive communication interfaces are able to communicate with different brands of robots and automation devices;

Touch sensing function with 80-400 voltage is easier to break down the rust on the surface of the workpiece;

IoT interface is reserved to connect with Megmeet SMARC cloud system;

U-disk upgrade function ensures customers to easily obtain Megmeet's most cutting-edge welding technology;

Application industries: precision welding in automobiles and parts, two/tricycles, aerospace, military industry, rail vehicles, new energy, etc.

Megmeet Megwave AC series AC MIG Welding Machines
Application & Industries

Application industries of Megmeet Megwave AC Series IGBT Inverter AC-MIG Welding Machine: precision welding in automobiles and parts, two/tricycles, aerospace, military industry, rail vehicles, new energy, etc.

  • MEGMEET Ship-building welding solutions - Dex2 Ultra series AC-MIG Welder
    Shipbuilding Welding
  • MEGMEET Yellow Goods welding solutions - Dex2 Ultra series AC-MIG Welder
    Yellow Goods Welding
  • MEGMEET Steel Fabrication welding solutions - Dex2 Ultra series AC-MIG Welder
    Steel Fabrication Welding
  • MEGMEET Sea Shipping Containers welding solutions - Dex2 Ultra series AC-MIG Welder
    Sea-shipping Containers Welding

Features

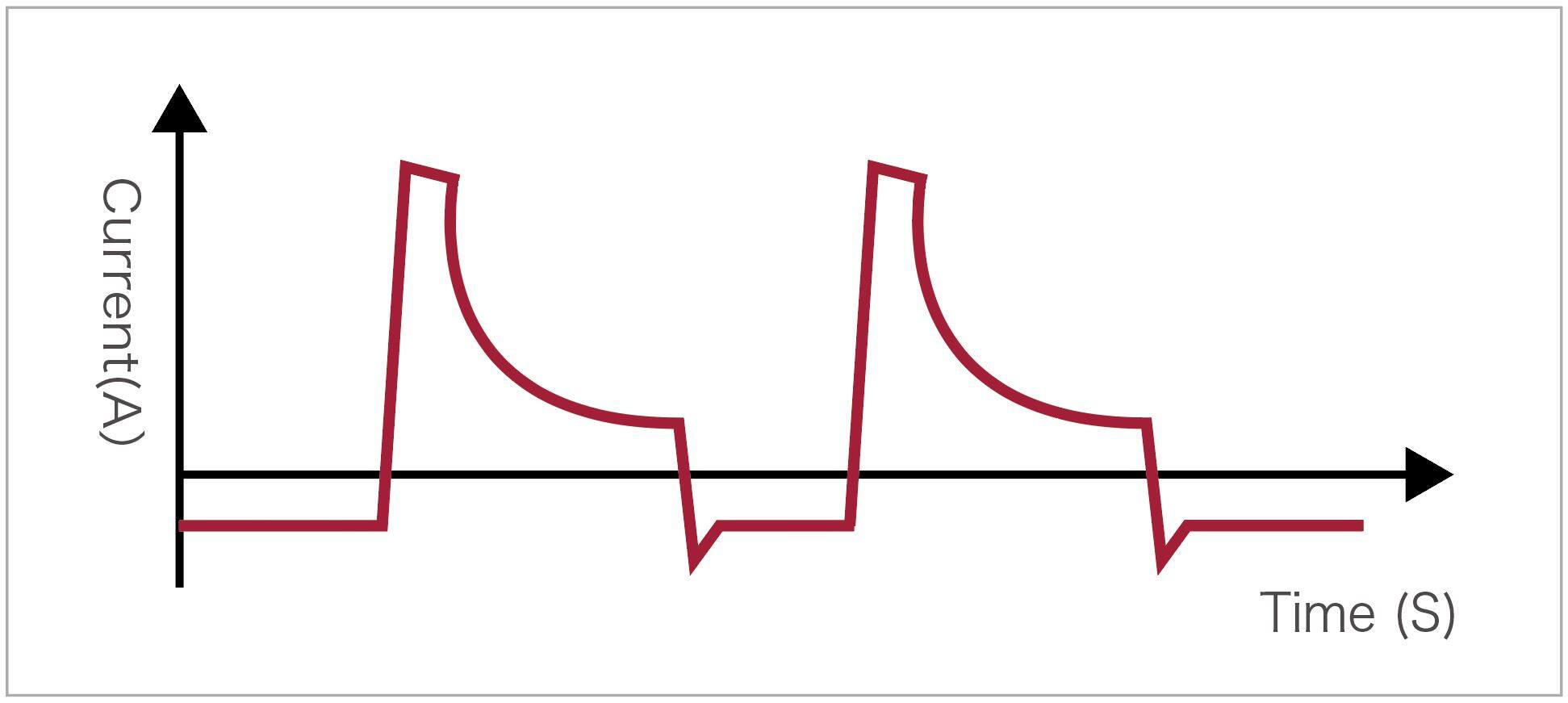

I. AC Pulse


Accurate and fast switching of pulse polarity is achieved by Megmeet patented algorithm, which integrates high speed and high efficiency of MIG welding with high quality of TIG welding, greatly optimizes welding production efficiency and welding quality.

AC pulse welding - Megwave AC series AC-MIG Welder


Welding Features:



AC pulse welding diagram - Megwave AC series AC-MIG Welder

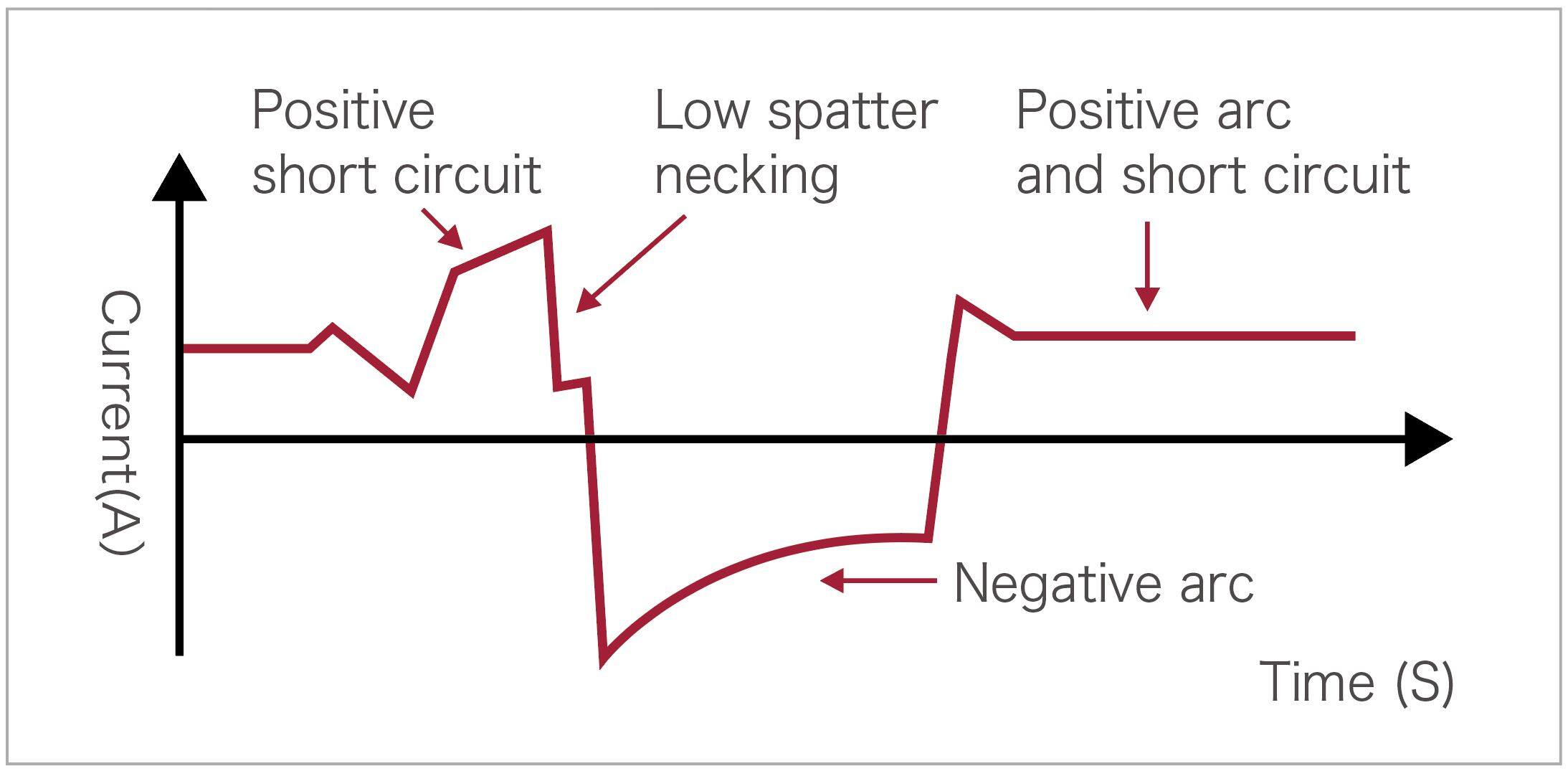

II. AC Short Circuit Transition



AC Short Circuit Transition - Megwave AC series AC-MIG Welder


Welding Features:


AC Short Circuit Transition - Megwave AC series AC-MIG Welder



III. High-Speed DC Welding


high speed DC welding - Megwave AC series AC-MIG Welder



IV. Wire Retraction Function in Arc Starting


Wire Retraction Function in Arc Starting - Megwave AC series AC-MIG Welder



V. Up-down Torch (optional)


Up-down Welding Torch (optional) - Megwave AC series AC-MIG Welder



VI. 400V High-voltage Touch Sensing Function




VII. Intelligent Upgrade


With an additional robotic accessories package, the manual-type welding power source can be expanded to a robotic welding power source to help users save money.

Intelligent Upgrade - Megwave AC series AC-MIG Welder



VIII. High Reliability

high welding reliability - Megwave AC series AC-MIG Welderhigh welding reliability - Megwave AC series AC-MIG Welderhigh welding reliability - Megwave AC series AC-MIG Welder




IX. Water Cooler (Optional)

Circulating Water Cooler AnyCool-66
Water cooler power supplyPowered by welding machine
Rated power370W
Rated voltage380V AC
Cooling water capacity6.8L
Cooling water flow3.5L/min
Cooling water maximum lift20m
Flow alarm


Water Cooler (Optional) - Megwave AC series AC-MIG Welder




Megwave series Communication Protocols with Robots

Megwave series Communication Protocols with Robots.png



Robotic Wire Feeder Selection

Megwave series Robotic Wire Feeder Selection.png



Manual Wire Feeder Selection

Megwave series Manual Wire Feeder Selection.png
