Artsen3 Series Multifunctional MIG Welders

CO₂/MAG/MIG/TIG/MMA All-in-one Machine

Available with many welding processes including DC flexible transition, pulse mixed transition, TIG, MMA, etc., and is able to weld various materials such as carbon steel, stainless steel, and aluminum alloy;

Unique mixed-pulse process perfectly integrates both advantages of pulse and DC short circuit, and welding speed is increased by more than 20% compared with standard pulse welding;

Huge expert welding database, up to 99 groups of welding parameter JOB, one-click call, and convenient operation;

Multiple protection functions such as input over/under voltage protection, phase loss protection, overheat protection, short circuit protection, etc;

Welding voltage and welding current compensation functions can realize the stability of long-cable welding and consistency of actual parameters with pre-set values;

Intelligent fan control to ensure excellent heat dissipation effect, reduce noise and overall power consumption;

Full series of machines are 100% duty cycle, and are suitable for use in harsh hearty-duty environments;

Main machine and wire feeder adapt high-voltage CAN communication and high-voltage code disk sampling. Signal transmission is strong anti-interference, be applicable in long-cable and large electromagnetic interference occasions;

RFID card binding function can support welding machines to use authority management and can be quickly connected with Megmeet SMARC Intelligent Welding IoT system;

U-disk Interface helps customers easily obtain Megmeet's most cutting-edge welding technology.

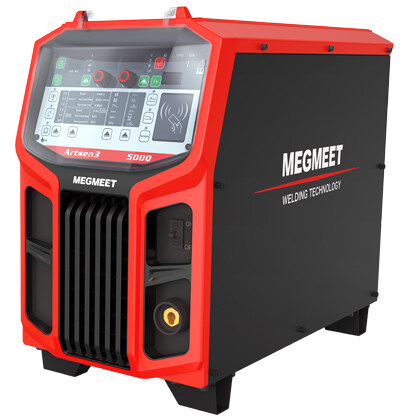

Artsen3 Series Inverter Multifunctional MIG Welding machine
Application & Industries

Artsen3 series inverter multifunctional welder has many welding processes including DC flexible transition, pulse mixed transition, TIG, MMA, etc., and can weld various materials such as carbon steel, stainless steel, and aluminum alloy.

Features

I. Mixed Pulse


Megmeet unique mixed pulse welding process adds add short-circuit transition algorithm based on pulse arc. Through the combination of software and hardware, the welding arc becomes lower, more concentrated, and more anti-interference. So, welding speed is faster than traditional pulse, and weld formation is better, which caters to robotic automation welding.

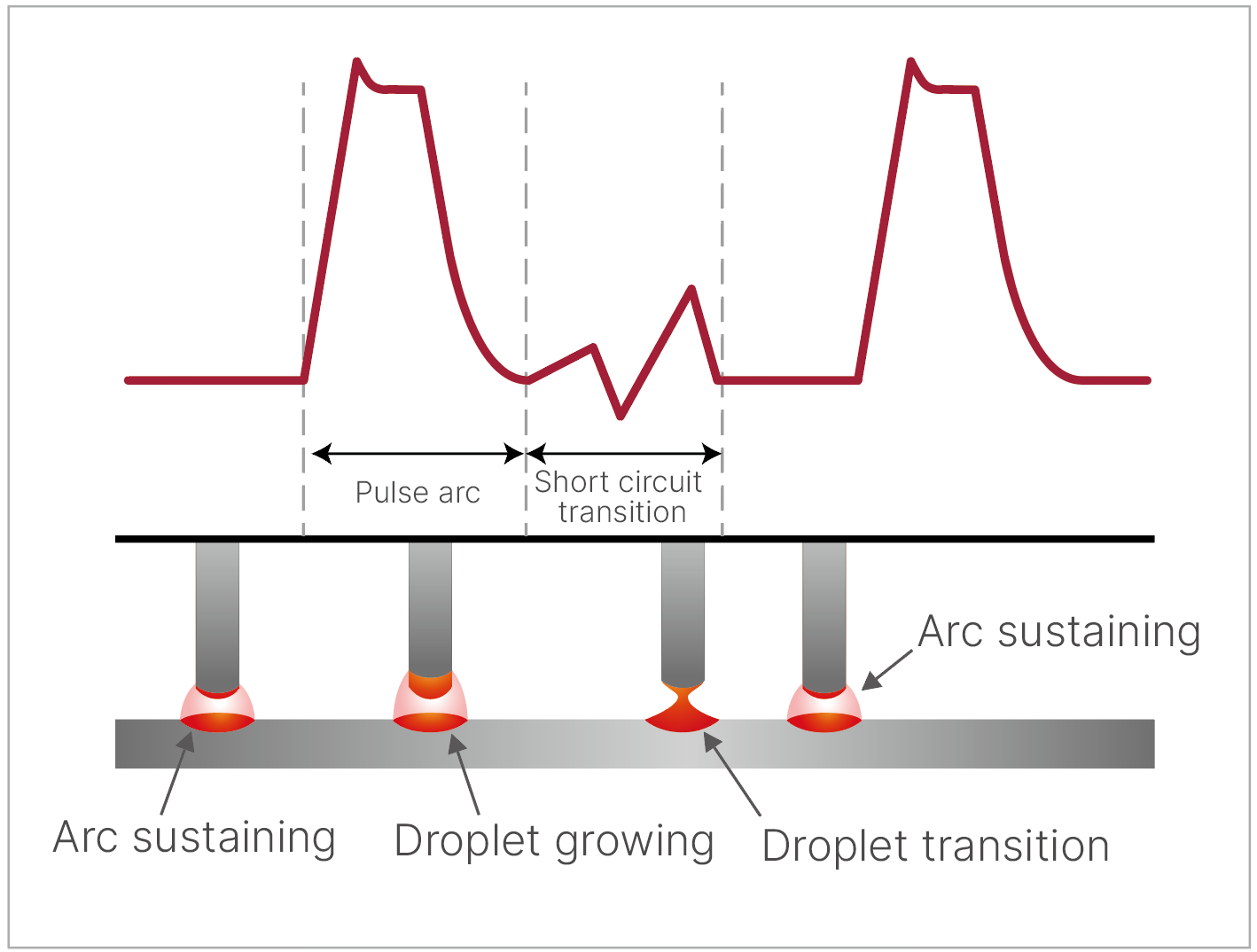

mixed pulse -Artsen3 series welding machines.png


Advantages:


  1. Arc is lower and fusion cladding efficiency is high, and  welding speed is 20% higher than standard pulse;

  2. More concentrated arc, stronger penetration, deeper fusion depth, and better fusion at the groove root;

  3. Spatter is less, not easy to produce defects such as undercut and pores;

  4. Droplet transition distance is short and anti-interference ability is extremely strong;

  5. Wearing parts are less heated, so service life is longer, and use cost is low;

  6. Heat-affected zone is small, and the mechanical properties of the welding joint are better.

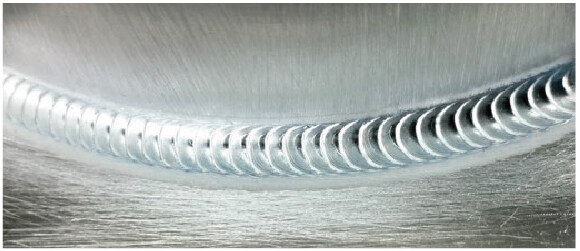

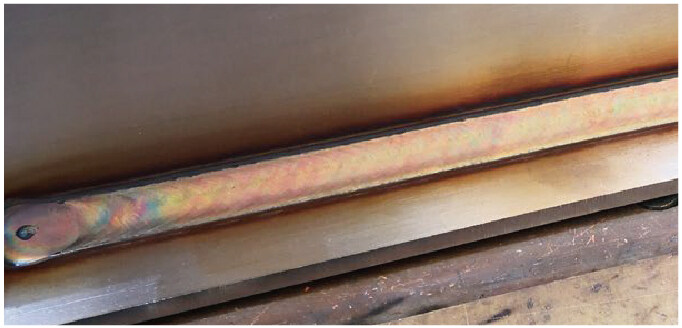

Mix Pulse - Artsen3 series all-in-one welding machines

Mix Pulse - Megmeet Artsen3 series all-in-one welding machines


II. Flexible Short-circuit Transition


By droplet necking detection and chopping control technology, short-circuit droplet transition is precisely controlled, so that the current of each droplet drops sharply to the arc-sustaining state at the moment of transition, and the droplet enters the fusion pool calmly, reducing the main spatter caused by wave bridge explosion. The entire waveform control can greatly reduce heat input simultaneously.


Advantages:


  1. Softer arc, calm fusion pool, and beautiful weld appearance;

  2. Spatter can be reduced by more than 70% compared with ordinary DC welding, and spatters do not stick to the work-piece and almost do not need to be cleaned;

  3. Low heat input and small deformation to work-piece ;

  4. Strong bridging ability is especially suitable for occasions with gaps or base welding.

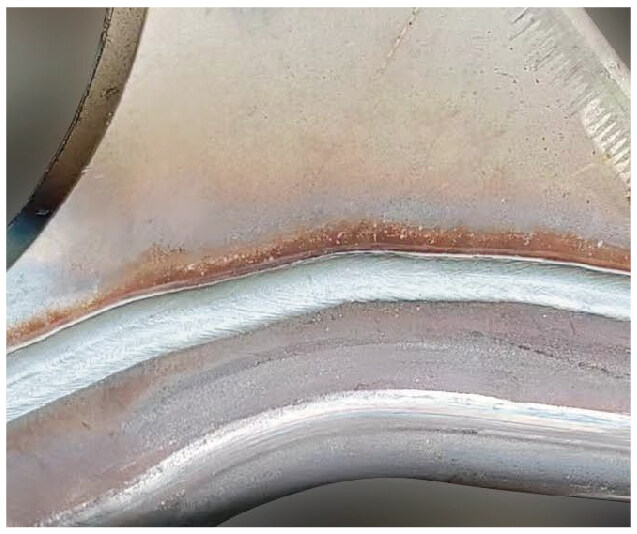

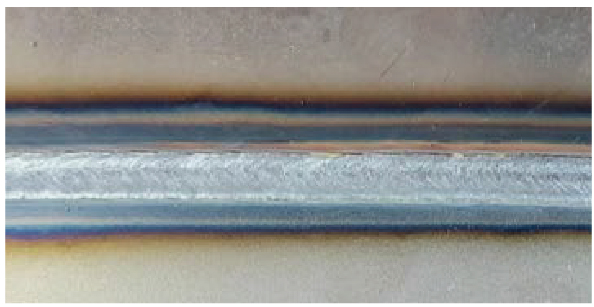

Flexible Short-circuit Transition - Artsen3 Series Multifunctional MIG Welders

Flexible Short-circuit Transition - Artsen3 Series Multifunctional MIG Welders
